Be the first to review this product
Expected December 31, 2024
The Par Z100 3K allows lighting and stage designers the look of the traditional stage par with the technological conveniences of modern day lighting. The advantages include low power draw, fixture and performers won't get hot on stage, DMX control of dimming and strobe. There are no dimmer controllers need. The fixture comes with a gel frame in which diffusion filters may be inserted to further change the beam angle.
ADJ Par Z100 3k 3000K 100 Watt COB Warm White LED Par Can Features:
- 4-button DMX menu display on rear panel.
- Adjustable latch to manually change beam angle.
- Includes gel frame for diffusion filters (Diffusion filter sold separately).
- Strobe effect (25Hz max).
- Flicker Free Operation.
- Electronic Dimming: 0 - 100% with 5 dimming curves.
- Run all night - No duty cycle.
ADJ Par Z100 3k Specifications:
Optical:
100 Watt COB Warm White LED (3000K)
Life expectancy: rated at 50,000 hrs.
LUX: 7135 (9?); 4440 (15?); 2236 (20?); 1266 (25?); 812 (30?)
CRI: 90
Beam angle: 9, 15, 20, 25 0r 30-degree (manual adjustment)
PWM frequency:1200Hz
Connection:
DMX: 5-pin DMX In/Out
powerCON In/Out to power battery or daisy chain fixture
Control:
Control protocol: DMX-512
2 DMX Channels
Electrical:
Power Draw Total (All LED's @ Full On): 115W, 0.964A @ 120V/60Hz, 112W, 0.5A @ 220V/50Hz
Multi-voltage operation: AC 100-240V, 50/60Hz
Daisy chain: 15 fixtures (120V); 25 fixtures (230V)
Dimensions / Weight:
Dimensions (LxWxH): 19.5" x 10.75" x 10.75" / 491 x 272 x 273mm
Weight: 7.5 lbs. / 3.4kg.

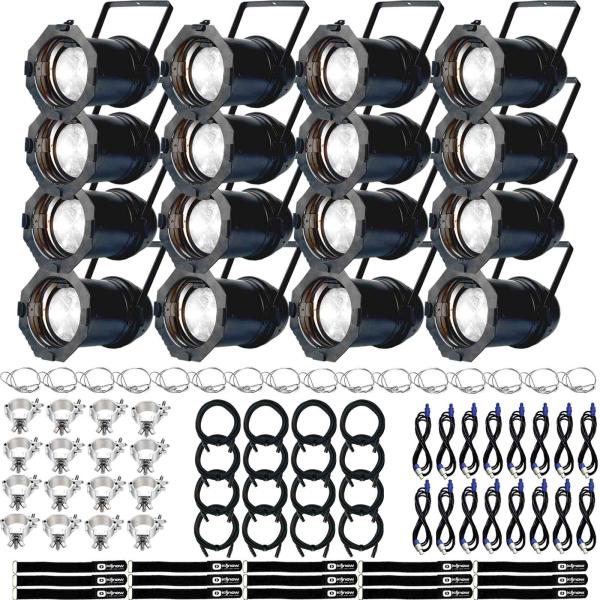

(16) ADJ Par Z100 3k 3200K 100 Watt LED Par Cans with Manual Zooms
(16) PowerCON power cords
(16) Gel frames for diffusion filters (Diffusion filter sold separately)
(16) Global Truss Mini 360 Clamps
(16) Blizzard Lighting 10FT PowerCon to PowerCon Male-to-Male Cables [POWERCON-INTER-1410]
(16) 25FT Sure-Fit DMX Connecting Cables
(16) Chauvet DJ CH-05 31" Lighting Safety Cables
(15) 8" Reusable Hook and Loop Cable Ties
