Be the first to review this product

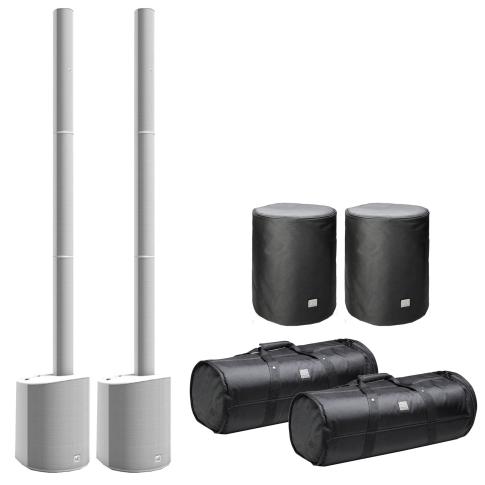

(2) LD Systems MAUI 5 White Ultra Portable Column PA Systems with Mixers and Bluetooth & Cases Package
Most orders placed by 2pm ET ship same day (business days)
LD Systems MAUI 5 White Ultra Portable Column PA System with Mixer and Bluetooth
The ultra compact MAUI 5 weighs in at less than 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB. Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.
The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5 lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars. Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.
LD Systems MAUI 5 SUB PC Transport Bag for LD MAUI 5 Subwoofer
Protective cover for the MAUI 5 subwoofer made of resistant Nylon 1680D with 8 mm padding and rear zip for easy access to the carrying handle.
LD Systems MAUI 5 SAT BAG Transport Bag for LD MAUI 5 Columns
Made of abrasion resistant and water repellent ballistic 1680D nylon, the MAUI 5 column bag is designed for convenient transport and protection. It features a rugged heavy gauge zipper, an accessory compartment for cables etc. and thick 8 mm padding. The bag holds all three MAUI 5 column elements.
LD Systems MAUI 5 Specifications
Product number: | LDMAUI5W |
---|---|
Product type: | PA system |
Type: | active |
Colour: | white |
Max. SPL (continuous): | 114dB |
Max. SPL (peak): | 120dB |
Frequency response: | 50 - 20000Hz |
Dispersion (H x V): | 120° x 20° |
Overall height: | 1985mm |
Weight: | 11.3kg |
Other features: | 4 channel mixer, DSP-based signal processing, Bluetooth |
Woofer characteristics | |
Low/mid driver dimensions: | 8" |
Low/mid driver dimensions (mm): | 203.2mm |
Woofer magnet: | Ferrite |
Woofer brand: | Custom-made |
Woofer voice coil: | 2" |
Woofer voice coil (mm): | 50.8mm |
Cabinet construction: | vented |
Cabinet material: | ABS plastic |
Subwoofer width: | 305mm |
Subwoofer height: | 405mm |
Depth Subwoofer: | 395mm |
Mid/Hi System | |
Midrange size: | 4 x 3" |
Midrange size: | 4 x 76.2mm |
Midrange magnet: | Neodymium |
Midrange brand: | Custom-made |
Midrange voice coil: | 1" |
Midrange voice coil: | 25.4mm |
Mid/Hi system impedance: | 4Ohm(s) |
Loudspeaker inputs: | 1 |
Speaker input connections: | Custom-made multipin |
Cabinet construction mid/high: | Closed |
Mid/Hi system cabinet material: | ABS plastic |
Mid/Hi system width: | 82mm |
Mid/Hi system height: | 535mm |
Mid/Hi system depth: | 105mm |
Amplifier Module (integrated in Subwoofer) | |
Amplifier: | Class D |
Amplifier Output System (RMS): | 200W |
Amplifier Output System (Peak): | 800W |
Protection circuits: | over-current, short circuit, DSP-based multiband limiter, thermal overload |
Cooling: | Convection |
Controls: | Line Level, BT level, Main Level, MP3 / Hi-Z Level, sub level, Mic Level, BT Pairing |
Indicators: | protect (protection circuit engaged), on, limit, signal |
Operating voltage: | Switching Power Supply, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion), 100 V AC - 120 V AC, 50 - 60 Hz |
Line inputs: | 2 x stereo |
Line input connectors: | XLR, 6.3 mm Jack |
Mic inputs: | 1, XLR, 6.3 mm Jack |
MP3 inputs: | 1 |
MP3 input connectors: | 3.5 mm jack |
Hi-Z inputs: | 1 |
Hi-Z input connectors: | 6.3 mm Jack |
Loudspeaker outputs: | 1 |
Speaker output connections: | Custom-made multipin |
DSP characteristics | |
Bit depth AD/DA converter: | 24 / 24bit |
Internal sampling frequency: | 48kHz |
This Package Includes:
(2) LD Systems MAUI 5 White Ultra Portable Column PA System with Mixer and Bluetooth
(2) LD Systems MAUI 5 SUB PC Transport Bags for LD MAUI 5 Subwoofers
(2) LD Systems MAUI 5 SAT BAG Transport Bags for LD MAUI 5 Columns
Each MAUI 5 Box Includes:
(1) LD Systems MAUI 5 Ultra Portable Column PA System with Mixer and Bluetooth
(1) Power cord
(1) User manual
The LD Systems MAUI 5 PA system consists of four components:
(1) Subwoofer with integrated electronics for all system components.
(2) Identical spacers with connectors on bottom and top.
(1) Column element with the speakers and a connection on the bottom.
(1) LD Systems MAUI 5 SUB PC Transport Bag for LD MAUI 5 Subwoofer
(1) LD Systems MAUI 5 SAT BAG Transport Bag for LD MAUI 5 Columns
