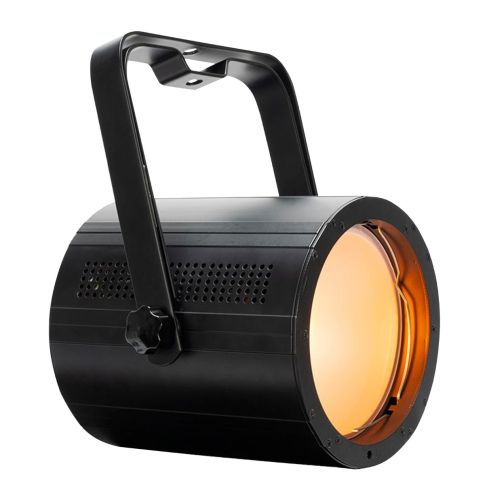

The ADJ COB Cannon LP200ST is a powerful and flexible professional wash lighting fixture that can be used for a wide variety of applications. It harnesses the power of an efficient 200-Watt COB (Chip On Board) RGBAL (red, green, blue, amber and lime) LED light source, which generates a potent and even output with no color shadows. This efficient light engine combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors as well as white light with a variable color temperature of between 2300K and 9900K. The inclusion of the lime LED chip helps certain colors to appear more vivid and also boosts the CRI to in excess of 90.
Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant colored light, the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system, both 3-pin and 5-pin DMX input and output sockets are included on the unit
ADJ COB-CANNON-LP200ST Product Specifications:
Optical:
Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine
LED Engine Life Rating: Approximately 50,000 hrs.
CRI: >90
Color Temperature: 2300~9900K
80-degree beam angle
Includes lens kit to change to 40-degrees or 50-degrees beam angle
Control:
10 DMX Channel modes (5, 8, 9, 10Ch-A, 10CH-B, 11, 12, 14, 17 and 21CH)
Linear color temperature control via DMX
Built-in color temperature presets accessible via DMX
64 built-in color macros
4-button OLED digital DMX display on rear panel
Compatible with the ADJ UC IR remote control (included)
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
6 selectable Dim Modes (Standard, Stage, TV, Architectural & Theatre)
4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)
Adjustable selectable Refresh Rate (14 presets from 900 - 25,000Hz)

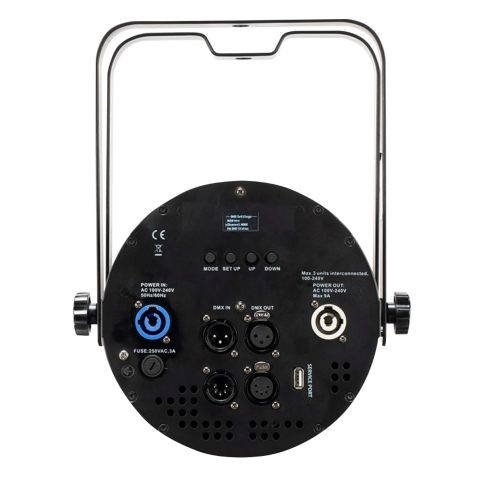

Connections:
3-pin & 5-pin XLR connectors for DMX data linking
Indoor locking power In & Out connections to daisy chain power
USB Service Port
Electrical:
Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
Power Draw: 175W max
Daisy chain up to 7 fixtures (120V) or 14 fixtures (230V) maximum
Dimensions & Weight:
Dimensions (LxWxH): 13" x 10" x 7.5" / 330x256x190mm
With bracket: 8.75" x 7.5" x 7.5" / 218.5x190x190mm
Weight: 9.26 lbs. / 4.2 kg.
Approvals / Rating:
cETLus Approved (#4002034)

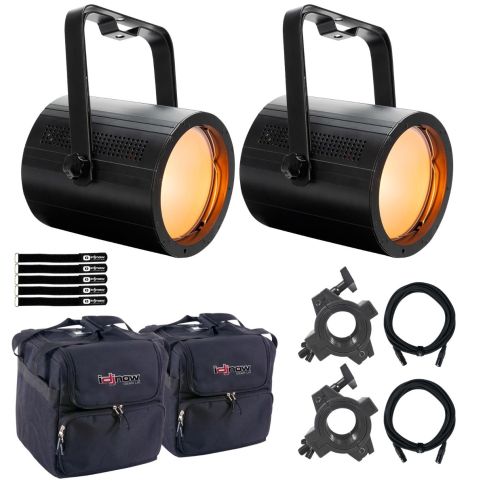

This Package Includes:
(2) ADJ COB-CANNON-LP200ST Color Mixing Wash RGBAL LED Lighting Fixtures

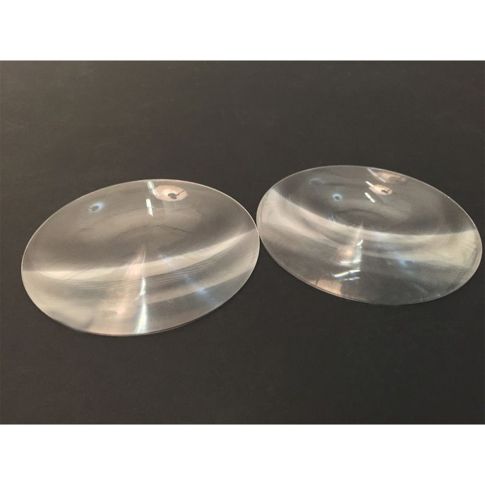

(2) 50-degree lenses
(2) 40-degree lenses

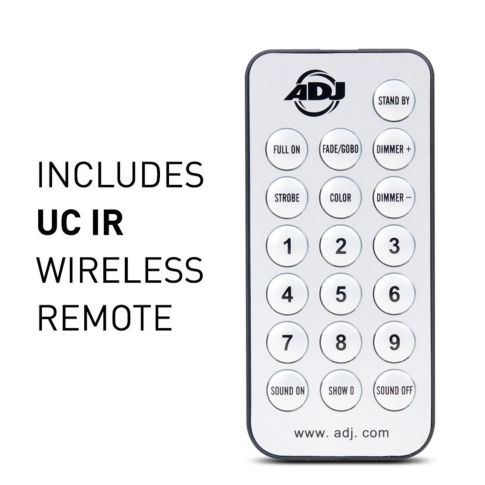

(1) UC IR Wireless Remote
(2) Power Cords
(2) Scissor Yokes
(2) Clutch IDJ125 Protective Cases for Mid Size Intelligent Scanner Lights
(2) Clutch 10' 3-Pin DMX Lighting Cables, XLR3-M to XLR3-F

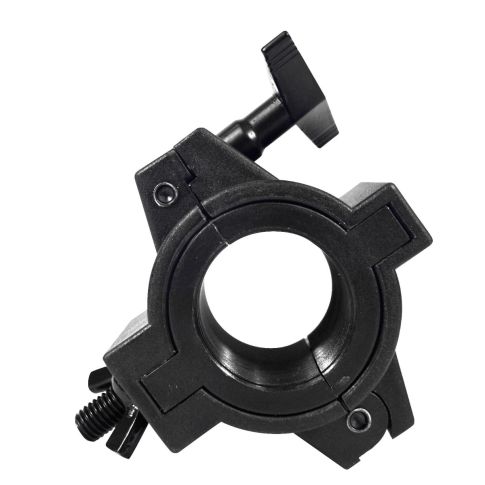

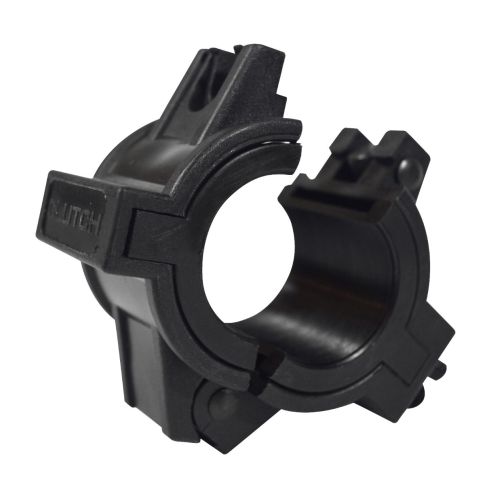

(2) Clutch Universal O-Clamps with Snug-Fit 360 Degree Wraps
(5) 8" Reusable Hook and Loop Cable Ties
