Be the first to review this product
(4) Chauvet Professional Ovation Reve E-3 Multi-Color LED Ellipsoidal Lighting Fixtures with 36° Lenses Package
SKU
OVATION-REVE-E3-36
Special Price $9,026.40 Regular Price $10,077.14
Item Backordered
Expected February 28, 2025
Only at IDJNOW
Ovation Rêve E-3 is the brightest, multi-color LED ellipsoidal that also has the capability of producing perfectly tunable whites. It's a new kind of epic story-telling machine that fuses the best of both worlds into one totally reimagined LED light source. Color Temperature presets ranging from 2800K to 8000K maintain outstanding brightness and a high quality of light, with an emulated "red shift" for a tungsten feel. Ovation Rêve E-3 also features several dimming curves, a virtually silent operation with fan-off modes, and a series of technician-friendly features such as an innovative, adjustable yoke that makes mounting in low clearance situations a breeze. With Ovation Rêve E-3 you can seamlessly transition from captivating a wide range of saturated colors in class-leading output to distinct whites with +/- green adjustments using one fixture. No ifs, or buts. Simply and categorically unrivaLED.
Chauvet Professional Ovation Rêve E-3 LED Ellipsoidal Features:
- Full-spectrum LED ERS-style lighting fixture for theatre, film and production.
- Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS.
- Virtual color wheel with color matched to popular gel colors.
- +/- Green adjustment and emulated red-shift via DMX or on-board control.
- RDM (Remote Device Management) for added flexibility.
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.
- Virtually silent operation for use in studio, film and theatre applications.
- Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
- Innovative adjustable yoke for mounting in low clearance areas.
- Direct power/data connection and control options for the Ovation GR-1 gobo rotator.
- USB port for fixture software updates.
Chauvet Professional Ovation Rêve E-3 Product Specifications:
OpticalLight Source: 91 LEDs (12 red, 19 green, 3 blue, 9 royal blue, 24 amber, 24 mint) 3.5 to 10 W, (2.4 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 5470K
CRI (3200 K): 95.4
Beam Angle (w/5° lens): 4.6°
Beam Angle (w/10° lens): 10°
Beam Angle (w/14° lens): 14.8°
Beam Angle (w/19° lens): 18.5°
Beam Angle (w/26° lens): 26°
Beam Angle (w/36° lens): 33.3°
Beam Angle (w/50° lens): 49.5°
Beam Angle (w/15°-30° lens)(Narrow): 13°
Beam Angle (w/15°-30° lens)(Wide): 28.5°
Beam Angle (w/25°-50° lens)(Narrow): 23.6°
Beam Angle (w/25°-50° lens)(Wide): 40.5°
Field Angle (w/5° lens): 5.6°
Field Angle (w/10° lens): 11.1°
Field Angle (w/14° lens): 16°
Field Angle (w/19° lens): 21.6°
Field Angle (w/26° lens): 29.6°
Field Angle (w/36° lens): 37.1°
Field Angle (w/50° lens): 55.7°
Field Angle (w/15°-30° lens)(Narrow): 15.4°
Field Angle (w/15°-30° lens)(Wide): 32.2°
Field Angle (w/25°-50° lens)(Narrow): 25.8°
Field Angle (w/25°-50° lens)(Wide): 44.1°
Lumens (w/5° lens): 5,076
Lumens (w/10° lens): 11,250
Lumens (w/14° lens): 12,179
Lumens (w/19° lens): 12,156
Lumens (w/26° lens): 13,300
Lumens (w/36° lens): 13,223
Lumens (w/50° lens): 12,216
Lumens (w/15°-30° lens): 12,057
Lumens (w/25°-50° lens): 14,355
Illuminance (w/5° lens): 31,856 lux @ 5 m
Illuminance (w/10° lens): 18,924 lux @ 5 m
Illuminance (w/14° lens): 9,284 lux @ 5 m
Illuminance (w/19° lens): 5,635 lux @ 5 m
Illuminance (w/26° lens): 3,378 lux @ 5 m
Illuminance (w/36° lens): 2,085 lux @ 5 m
Illuminance (w/50° lens): 870 lux @ 5 m
Illuminance (w/15°-30° lens)(Narrow): 9,292 lux @ 5 m
Illuminance (w/15°-30° lens)(Wide): 2,671 lux @ 5 m
Illuminance (w/25°-50° lens)(Narrow): 3,710 lux @ 5 m
Illuminance (w/25°-50° lens)(Wide): 1,527 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions (fixture only, yoke up): 20.44 x 13.07 x 20.53 in (519 x 332 x 522 mm)
Dimensions (w/5° lens extended, yoke up): 41.60 x 14.17 x 21.42 in (1056 x 360 x 544 mm)
Dimensions (w/10° lens extended, yoke up): 32.87 x 13.07 x 20.01 in (835 x 332 x 510 mm)
Dimensions (w/14° lens extended, yoke up): 29.7 x 13.07 x 20.53 in (755 x 332 x 522 mm)
Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up):26.83 x 13.07 x 20.53 in (681 X 332 X 522 mm)
Dimensions (w/15°-30° lens, yoke up): 33.02 x 13.52 x 20.53 in (839 x 343 x 522 mm)
Dimensions (w/25°-50° lens, yoke up): 25.74 x 13.52 x 20.53 in (838 x 343 x 522 mm)
Weight (fixture only): 18.6 lb (8.4 kg)
Weight (w/5° lens): 26 lb (11.7 kg)
Weight (w/10° lens): 24 lb (10.8 kg)
Weight (w/14° lens): 25.6 lb (11.6 kg)
Weight (w/26° lens): 24.2 lb (10.9 kg)
Weight (w/15°-30° lens): 32.3 lb (14.6 kg)
Weight (w/25°-50° lens): 29.8 lb ( 13.5 kg)
Exterior Color: Black
Gobo Size (Optional): "A": 100 mm (outside), 75 mm (image), 2.5 mm (max. thickness)
Gobo Size (Optional): "B": 86 mm (outside), 64.5 mm (image), 2.5 mm (max. thickness)
Accessory Holder/Gel Frame Size (5° lens): 14 in (356 mm)
Accessory Holder/Gel Frame Size (10° lens): 12 in (304 mm)
Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
Accessory Holder/Gel Frame Size (15°-30° lens): 7.5 in (191 mm)
Accessory Holder/Gel Frame Size (25°-50° lens): 7.5 in (191 mm)
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
Modes/Personalities: 9 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18, HSV)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
Power and Current: 367 W, 3.04 A @ 120 V, 60 Hz
Power and Current: 356 W, 1.76 A @ 208 V, 60 Hz
Power and Current: 353 W, 1.59 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories
Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°

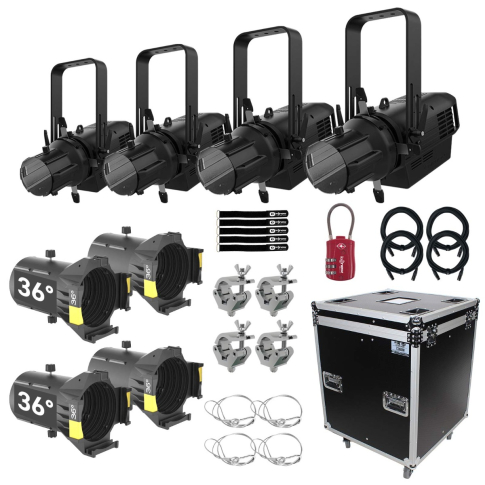

This Package Includes:
(4) Chauvet Professional Ovation Rêve E-3 Multi-Color LED Ellipsoidal Lighting Fixtures
(4) Seetronic Powerkon power cords
(4) Ovation Metal Gobo Holders
(4) Soft Focus Filters
(4) Chauvet Professional 36 Degree Ovation Ellipsoidal HD Lens Tubes
(4) Chauvet DJ CH-05 31" Lighting Safety Cables
(4) Global Truss Pro Clamps
(4) Clutch 25' 3-Pin DMX Lighting Cables
(1) ProX XS-SRC4X4W Road Case - fits up to 4 ETC Source Four Fixtures
(1) IDJNOW TSA Combination Lock (red)
(5) 8" Reusable Hook and Loop Cable Ties
