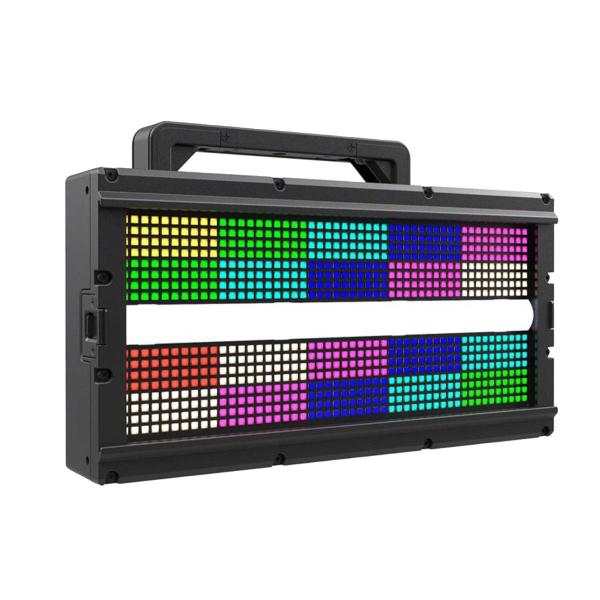

ADJ JOLT PANEL FXIP IP65-Rated RGBCW LED Strobe/Effect Panel Fixture
SKU
JOLT-PANEL-FXIP
$1,329.99
In Stock - Almost Gone
Most orders placed by 2pm ET ship same day (business days)
Only at IDJNOW
The ADJ Lighting Jolt Panel FXIP is an extremely bright and versatile fixture ideal for concert tours, one-off event production and permanent nightclub installations. It features a central strip of 48 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 800 x 0.5-Watt RGB SMD LEDs. The Jolt Panel FXIP provides lighting designers with the creative potential of generating strikingly bright white strobe flashes, vibrant color washes, and animated 'eye candy' chase effects from the same compact fixture which can be used inside or outdoors in any weather.
ADJ JOLT PANEL FXIP IP65 LED Strobe/Effect Panel Fixture Features:
- 40 x RGB LED Zones.
- 6 x Cool White LED Zones.
- 25 Built-in RGB LED Program Macros.
- 9 Built-in Cool White LED Program Macros.
- IP65-Rated for temporary outdoor and indoor use.
- Aria X2 Wireless DMX Built-in.
- Channel for Light Shaping Filters (to Blur Pixel Dots.)
- End Cap Locking Mechanism and Connecting Plat (for seamless fixture linking.)
- Built-in Holes to Connect an Omega Bracket (sold separately.)
ADJ JOLT PANEL FXIP Product Specifications:
Light Source:
800 x 0.5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs
73° Beam Angle
111° Field Angle
Color LEDs Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White LED: 6900-7400K Color Temperature
CRI: 69.4
50,000 Hour Average LED Life
Control:
Control Protocols: DMX, Aria X2 and RDM
10 DMX Channel Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law & S Curve)
0-100% Smooth Dimming
Strobe, Shutter & Pulse Control
Max Strobe Rate 20Hz; Min Strobe Rate: 1Hz.
Refresh Rate: 900Hz - 25kHz.
With Wired Digital Communication Network
Display: OLED Display with 4-Button Touch Menu
Connections:
Data: IP65-rated Outdoor Locking 5-pin DMX In/Out
Power: IP65-rated Outdoor Locking Power In/Out
Electrical:
100-240V 50Hz/60Hz (Auto Sensing)
Max Power Consumption: 214W @120V; 208W @230V
Max Power Link: 6pcs @120V; 12pcs @230V
Fuse Protected: T5A/250V Glass Fuse (5*20MM)
Dimensions / Weight:
Length: 6.06" (153.8mm)
Width: 16.42" (417mm)
Height: 10.38" (263.5mm)
Weight: 13.67 lbs. (6.2kg)
Approvals and Ratings:
CE
cETLus (Pending)
IP65
Each JOLT PANEL FXIP Retail Box Includes:
(1) ADJ JOLT PANEL FXIP IP65-Rated RGBCW LED Strobe/Effect Panel Fixture
(1) IP65-rated, 6ft (1.83m) Power locking to Edison Power Cable (U.S.)
