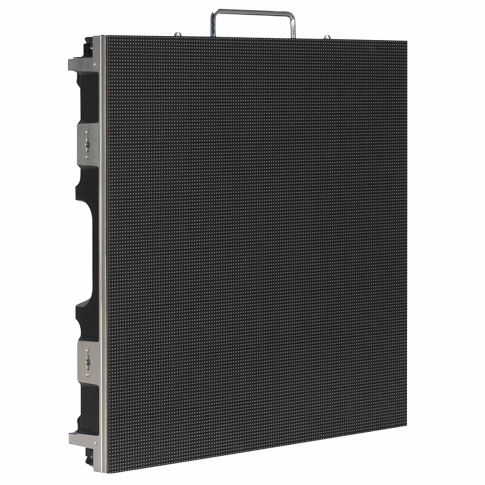

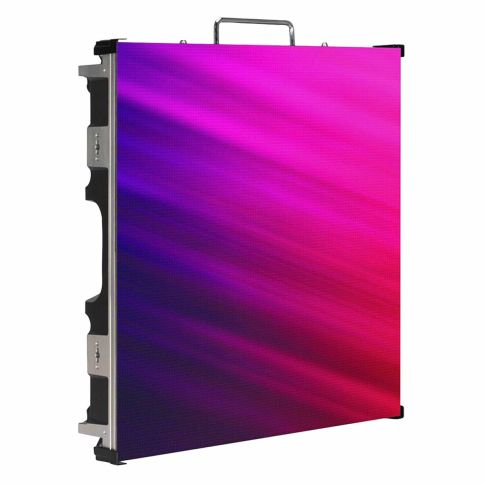

The ADJ Lighting EVS3 is a rugged LED video panel solution designed for temporary installations that demand stunning visual displays. With a pixel pitch of 3.91mm and a configuration of a 3-in-1 RGB SMD2121 LED, the EVS3 delivers crisp and vibrant images with a pixel density of 128x128, totaling an impressive 65,536 pixels per square meter. The EVS3 is built for convenience and durability, featuring front and rear serviceability with four easily replaceable video modules on each panel. Its compact size of 19.68" x 19.68" x 2.96" and lightweight construction weighing just 16.5 lbs make it highly portable and easy to handle.
Equipped with corner protectors for added durability during transport and setup, the EVS3 ensures that your investment remains protected. Its exceptional optical ratings include a brightness of 800 NITS and a wide viewing angle of 160° horizontal and 140° vertical at 9.75 ft. The EVS3 also offers versatile control options, supporting various input modes such as Composite, S-Video, Component, VGA, DVI, HDMI, and HD-SDI. Memory on Module (MOM) is a technology in select LED video panels, such as the ADJ EVS3, that stores critical calibration and configuration data directly within each module. This allows the panel to retain its unique settings—like brightness, color calibration, and uniformity—even when repositioned or replaced. Ideal for rental and touring applications, MOM ensures a fast setup and consistent visuals by eliminating the need for manual recalibration after assembly or maintenance.
Hang up to 20 EVS3 Video Panels vertically with the VSRB1 (VS1100) Rigging Bar. For added convenience, a range of optional accessories are available, including flight cases, rigging bars, support brackets, and video processors, allowing you to customize and enhance your installation according to your specific needs. The EVS3 is intended for temporary use only and should not be permanently installed. Elevate your visual experience to new heights with the ADJ Lighting EVS3 LED video panel.
ADJ EVS3 LED Video Panel Features:
- Memory on Module (MOM): Enhanced functionality for seamless operation.

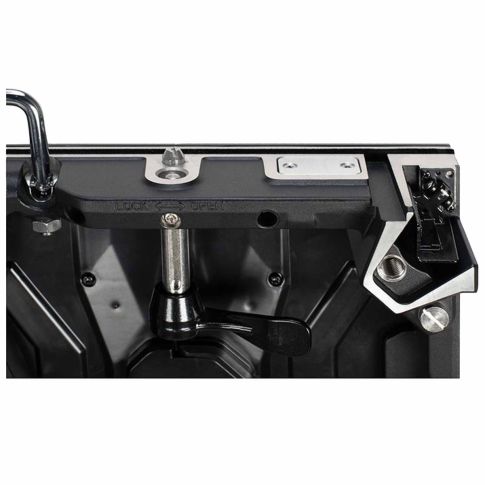

- Corner Protectors to protect the corners of the EVS3 during transport, set-up and teardown.

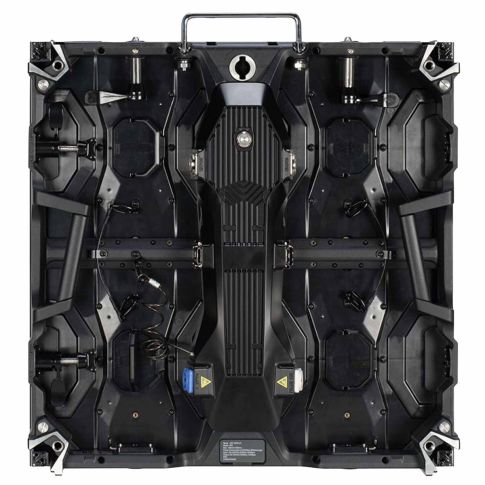

- Front and rear serviceable: 4 easy to replace video modules on each panel.
ADJ EVS3 Product Specifications:
Pixel Pitch: 3.91mm (0.15”)
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 128x128; 65536 per square meter
Size :19.68” x 19.68” x 2.96” / 500 x 500 x 75mm
Module Quantity: 4
Weight: 16.5 lbs. / 7.5kg.
Mechanical Ratings:
Surface Flatness: Gaps<0.5mm
Optical Ratings:
Brightness: 800 NITS
View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
Gray Scale: ≥14-bit
Display Color: 256
Brightness Adjustment: 0~100% 100 Levels
Contrast ratio: 5000:1
Processing: 14-bit
Power Supply:
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 120W/per panel
Ave. Power Consumption: 48W/per panel
Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
Control System:
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-75Hz
Scan Mode: 1/16
Refresh Rate: 3840Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <120m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
Environmental:
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Video Wall Systems:
EVS3 video wall systems include: video panels, video processor, power cables, data cables, rigging bars and video software (computer sold separately).
EVS3-4X2: 8 Panel (4x2) Video Wall System
EVS3-5X3: 15 Panel (5x3) Video Wall System
EVS3-7X4: 28 Panel (5x3) Video Wall System
Optional Accessories:
VSFC8 (VS8100): Flight Case – Fits 8 EVS3 Video Panels
VSRB1 (VS1100): Rigging Bar – Hang up to 20 EVS3 Video Panels vertically
VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.
VSRQR (VSR210): Quick Rig - Attaches and locks on to the rear of EVS3 so it can be fastened to a 2" pipe or truss
VS1RSB (VS1126) Rear Support Bracket for EVS3
VSSCSB VSS225): Single Column Support Base
VSGSB (VSG100): Ground Support Base
VSGSLT (VSG132): Ground Support Ladder Truss
VSGSCSB (VSG155): Clamp Support Bar
EVSVAC (EVSVAC): Vacuum Tool to Remove Modules
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Novastar Nova Pro HD: Video Processor
Arkaos Media Master: Video Software
Arkaos GrandVJ 2.0: Video Software
Cables:
Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
Indoor Power Locking Link Cables
Indoor Power Locking Main Power Cables
Certifications:
cETLus
Each EVS3 Retail Box Includes:
(1) ADJ EVS3 3.91mm Pixel Pitch LED Video Panel
