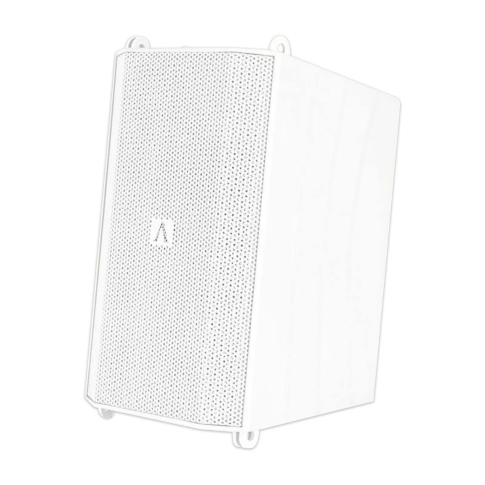

Avante Audio IMPERIO-WHITE 240W RMS Class D Power Amplifier with Dual 4.75" Woofers in White Housing
Expected November 30, 2024
240W RMS Class D Power Amplifier with dual 4.75" woofers. Part of the Imperio Mini Line Array Series. White housing Avante Audio's Imperio W mini line array system is a great fit for small to mid-size venues. The Imperio system consists of the Imperio Sub, a 10-inch, 400W Subwoofer with a Class D digital amplifier, and the Imperio, a cabinet with dual 4.75-inch woofers, a 240W Class D power amplifier and 24-bit DSP. The system may be configured in a variety of ways with multiple Imperio Subs and 8 Imperio cabinets linked together with the sub on top or bottom. All items including the flybar are sold separately to allow for maximum customizability and versatility.
Available in white, Imperio accessories include: Imperio Flybar LG (IMP265), Imperio Flybar Small (IMP496), Imperio Pole (IMP194) and Linkpin 2 (IMP340).
Avante Audio IMPERIO-WHITE Class D White Amplifier Features:
- 240W Class RMS D Amplifier Module.
- Switching Power Design.
- LED Power / Signal / Clip Indicator.
- 24-bit DSP Selectable Configurations.
- 2x 4.75" Neodymium Woofer with 1-inch voice coil.
- 6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology).
- Type: 2-Way Active Closed Design.
- Frequency Response: 150Hz - 20KHz.
- Impedance: 4 Ohm.
- Max Output SPL: 117dB (single box measured on Axis @1m).
- Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB.
Avante Audio IMPERIO-WHITE Product Specifications:
Amplifier:
240W Class RMS D Amplifier Module
Switching Power Design
LED Power / Signal / Clip Indicator
24-bit DSP Selectable Configurations
Input: 1x 3pin XLR and Locking Power Connector
Output: 1x 3pin XLR and Locking Power Connector
Volume: Selectable Input Sensitivity Dial
Power Input: 100-240V ~ 50/60Hz
Speaker:
2x 4.75" Neodymium Woofer with 1-inch voice coil
6x 1.75" IDVAT HF drivers (Inverted Dome Vertical Array Technology)
Type: 2-Way Active Closed Design
Frequency Response: 150Hz - 20KHz
Impedance: 4 Ohm
Max Output SPL: 117dB (single box measured on Axis @1m)
Selectable Input Sensitivity: -3dB, 0dB, 3dB, 6dB
Cabinet: ABS Plastic
Grill: 1.0mm steel
Splay Angles: 0, 4, 8, & 12-degrees
Integrated Rigging: Yes
Dispersion Angle: 90-degree x 15-degree
Dimensions (LxWxH): 7.3"x8.8"x12.8" / 184.8x224x324mm
Weight: 14 lbs. / 6.3 kg.
Each IMPERIO-WHITE Retail Box Includes:
(1) Avante Audio IMPERIO-WHITE 240W RMS Class D Power Amplifier with Dual 4.75" Woofers in White Housing
