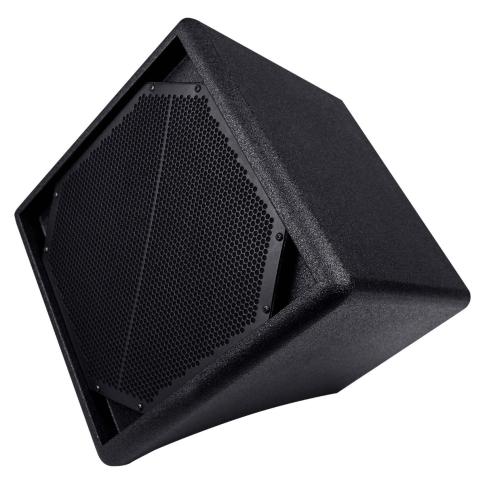

BASSBOSS DiaMon 112 12" Remote Powered Top Weatherized Passive Loudspeaker - Polyurea Black

The DiaMon-MK3 is a high-output, point-source loudspeaker that can make your life easier thanks to its remarkably small size. This very compact and portable system provides impressive output without ever having to lift a large, heavy cabinet. In terms of output SPL relative to size, the DiaMon-MK3 has virtually no competitors. The compact, high fidelity and high output DiaMon-MK3 continues the BASSBOSS tradition of delivering remarkable output capability and outstanding sound quality. Achieving this level of performance from such a small enclosure is made possible by making decidedly different design and component choices. The cabinet is made from Birch plywood, which is strong and solid, and the small size makes it very easily portable. The small size is made possible by the use of a co-axial driver in a sealed enclosure. With the high-frequencies exiting co-axially through the center of the woofer, no extra space is required for the addition of a high-frequency horn.

The low and midrange frequencies are produced by a high-sensitivity 12" cone woofer with a 3" voice coil and a neodymium magnet. The same magnet is used for the 3" diaphragm high-frequency compression driver, the 1.4" output of which passes through the woofer's pole-piece. The inner surface of the pole-piece is machined into the shape of a horn. The woofer cone is the continuation of that horn, making it possible to generate very high output from a very small total surface area. The resulting coverage pattern is 80 degrees conical, permitting a large coverage area and a great deal of placement options. A significant advantage of co-axial loudspeakers is the consistency of their off-axis response. Aside from delivering a more consistent and intelligible sound field, this also makes them much more resistant to feedback. The amplifier features a Class D SMPS with PFC, providing two channels, 900W LF and 300W HF. Eight on-board presets allow for a variety of configurations at the touch of a button, and LAN connectivity allows access to virtually unlimited preset combinations.

BASSBOSS DiaMon 112 12" Top Weatherized Passive Speaker Features:

• DiaMon-MK3 Single 12" Powered Top
• Sweet sound, signature shape, simply smashing sophistication.
• The DiaMon doesn't waste any energy or space trying to deliver the lows that the subs can handle perfectly well.
• Its power is concentrated on the very important job of delivering loud, clear mids and highs.
• Enough to keep up with several large subs.
• A high-efficiency 12" midrange/woofer with a 3" compression driver tweeter firing through the middle is loaded into a cabinet that's as small as possible, just big enough to hold the driver, the 1200W amp and the DSP electronics.
• There are all-new amplifiers in the MK3 series.
• Total power has increased, however power allocated to woofers increased substantially.
• The higher output voltages provide more impact.
• Universal input voltage compatibility of 90-250V provides more flexibility.
• Waterproof connections provide more peace-of-mind.
• The MK3 features an all-new 96kHz DSP.
• The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN.
• The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.
• ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups.
• The latest in DSP programming developments can be added via easy remote updating.
