Be the first to review this product
Expected October 31, 2024

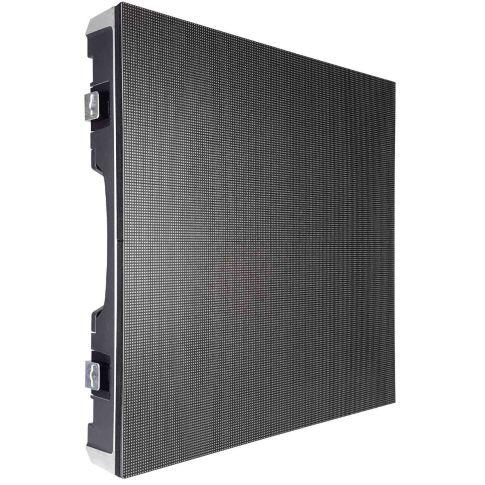

Featuring enhanced processing hardware and completely redesigned mechanics, IRiS R2 offers class-leading performance and reliability. IRiS R2 is an ETL listed professional indoor rated LED video panel with a 2.9mm pixel pitch for high resolution at both short and far viewing distances, and have an exceptional 1200nit brightness with a 3840Hz refresh rate. They are designed for easy one man handling, and their sophisticated quick lock system makes setup a breeze. These panels also feature fast and accurate side locks that allow curved connections from 10° concave to 5° convex.
These panels weigh in at under 20lbs thanks to their strong and lightweight CNC + cast aluminum frame, and module maintenance is tool-free and easy with their 4x magnetic-mount front/rear modules per panel. They can be controlled flawlessly with the Novastar TB6 or VX4S LED display controllers, and each panel comes with a 3' etherCON compatible interconnect, plus a 3' powerCON compatible interconnect cable.
Blizzard Lighting IRiS R2 2.9mm Indoor LED Video Panel Features:
- Panel Dimensions: 500×500x100mm.
- Pixel pitch (mm): 2.9.
- LED Type: Blackface SMD 2020.
- Panel Material: CNC + Cast Aluminum.
- Front IP Rating: IP40.
- Rear IP Rating: IP21.
- Curve Hardware: Double-arm.
- Modules Per Panel: 4.
- Panels required for Native HD: 84.
- Rigging Options: IRiS-R2 & IP3-FLY1 + IRiS-R2 & IP3-FLY2 Bumpers, Ground Support, Wall Mounted.
- Max Rigged Height: 20 panels.
Blizzard Lighting IRiS R2 Product Specifications:
Optical:
Pixel pitch (mm): 2.9
Native Resolution: 168x168
Pixels per Panel/m2: 28,224
LED Type: Blackface SMD 2020
Module Type: Magnetic, Universal
LED Lifetime (H): 100000
Brightness (cd/m2): 1200
Refresh Rate (Hz): 3840
Grayscale: 15-bit
Contrast Ratio: 7000:1
Color Temperature (K): 6500
Viewing Angle (H/V) (°): 150/140
Power:
Operating Voltage: 100-240VAC
Max Power Consumption (W/m2): 510W
Electronics Service: Front/Rear
Backbox Design: Modular
Power: Neutrik powerCON in/out
Data: Neutrik etherCON in/out
Dimensions & Weight:
19.7" L x 19.7" W x 4" H
19.4 lbs
Warranty:
2-year limited warranty
Each IRiS R2 Retail Box Includes:
(1) Blizzard Lighting IRiS R2 2.9mm Indoor LED Video Panel
(1) 3' etherCON compatible interconnect cable
(1) 3' powerCON compatible interconnect cable
