Be the first to review this product
Expected February 28, 2025

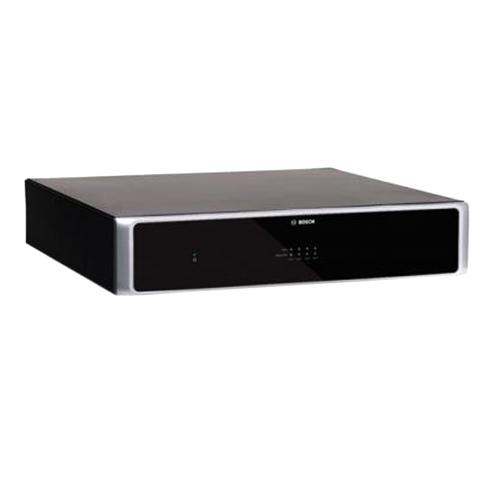

The PLM-4Px2x PLENA matrix Amplifiers are built to perform. Designed to be reliable, cost effective, multi channel amplifiers; they are suitable for almost any application that demands high quality audio and flexible control. The built-in DSP processor is packed with powerful features. The loudspeaker library will allow the easy tuning of Bosch/EV/Dynacord loudspeaker products. The power saving mode on the amplifier allows the amplifier to save over 80% of its running costs when areas are not being used. Equipped with "Amp Link", combining both the PLM-4Px2x amplifiers with the PLM-8M8 8 Channel DSP Matrix Mixer couldn't be easier.
Some typical application include: Shopping centers, schools, restaurants, bars, nightclubs, cafes, gyms, recreational facilities, churches, warehouses, office buildings, regional airports, train stations, bus terminals, boardrooms, meeting rooms, conference facilities, small theme parks, museums, back of house performing arts centers and sports stadiums.
- 4-channel, Class D power amplifier.
- 100V/70V/8Ω/4Ω outputs.
- Complete loudspeaker processing DSP with input mixing; controlled by PC GUI and iOS app.
- Amp Link to connect easily with PLM-8M8.
- Environmentally friendly auto standby mode.
Bosch PLM-4P220-US Specifications
Electrical
Power supply
Mains voltage:
Nominal input voltage 100 - 240 VAC ±10%, 50/60 Hz
Input voltage limits 90 - 264 VAC
Power consumption (-6dB/idle/standby): PLM‑4P220 412 W / 36 W / 6 W
Performance
Rated outputs voltage/impedance 100 V / 70 V / 8 ohm / 4 ohm
Rated output power per channel (continous *): PLM‑4P220 220 W
Rated output power per channel (burst *): PLM‑4P220 220 W
Bridged (CH 1‑2 / 3‑4) (continous *): PLM‑4P220 385 W
The PLM-4P220-US Box Includes:
(1) PLM‑4P125 or PLM‑4P220 Power Amplifier
(1) Power cord
(1) Set of 19”mounting brackets
(1) CAT 5 cable 26 AWG shielded (1 m)
(1) Safety documentation
