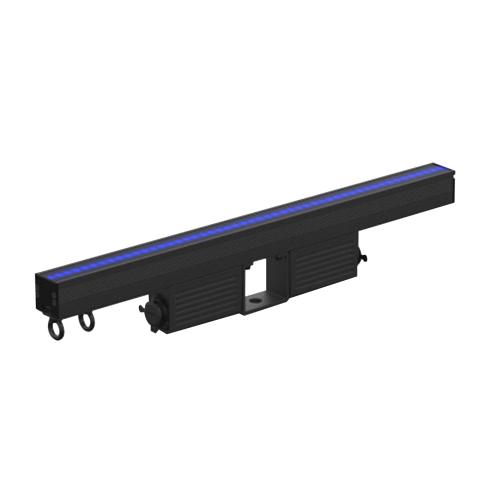

Chauvet EPIX Strip IP 50 Fixture Features:
- Pixel-mapping IP65 outdoor half-meter 50 x 1 LED strip for showing video and/or motion graphics.
- Includes square milky filter (installed) for diffused output, round milky filter (included) for diffused output, and black stealth filter (included) for high contrast.
- Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets.
- Reduce programming time and increase application by using the alternate personalities of 7 channel, multi-section control (15-30 channels), or use the Pixel personality (150 channels) for use with video servers.
- Increase viewing angle by using the dome or square accessory.
- EPIX Drive 2000 IP required for operation.
Chauvet EPIX Strip IP 50 Specifications:
Optical
Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle (with installed Square Milky Filter): 160°
Viewing Angle (with optional Round Milky Filter): 160°
Viewing Angle (with optional Black Stealth Filter): 125°
Illuminance – open: 8,640 NITS
Illuminance - Square Milky Filter (installed): 2,470 NITS
Illuminance - Black Stealth Filter (included): 1,455 NITS
Illuminance – Round Milky Filter (included): 1,360 NITS
Pixels: 50 x 1
Pixel Pitch: 10 mm
Refresh Rate: 4,800 Hz
Construction / Physical
Dimensions (with installed Square Milky Filter ): 19.68 x 1.33 x 3.93 in (500 x 34 X 100 mm)
Dimensions: (with included Black Stealth Filter) 19.68 x 1.33 x 3.46 in (500 x 34 x 88 mm)
Dimensions (with included Round Milky Filter): 19.68 x 1.77 x 5.03 in (500 x 45 X 128 mm)
Weight: 3.4 lb (1.5 kg)
Exterior Color: Black
Housing Material: Aluminum
Connections
Data Connectors: IP-65 4-pin XLR
Physical Linking: 20 inline EPIX Strip IP per port of Drive 2000 IP
Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
Total max. cable length (shielded cables) between EPIX Drive 2000 IP and last EPIX IP fixture: 210 ft (64 m)
Max. cable length (shielded cables) between EPIX Drive 2000 IP and first EPIX IP fixture: 65 ft (20 m)
Max. cable length (shielded cables) between EPIX IP fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between EPIX Drive 2000 IP and last EPIX IP fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between EPIX Drive 2000 IP and first EPIX IP fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between EPIX IP fixtures: 100 ft (30 m)
Control
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels Art-net, sACN: 7, 15, 30, 75, or 150
Electrical
Power and Current: 16 W, 0.133 A @ 120 V, 60 Hz
Power and Current: 17 W, 0.082 A @ 208 V, 60 Hz
Power and Current: 17 W, 0.073 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP65, outdoor/wet
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Required Accessories
Controller (required): EPIX Drive 2000 IP
Compatible Mounting Options: M12 Bolt/Clamp (rear mounting)
(1) Chauvet Professional EPIX Strip IP 50 Outdoor-Rated Pixel-Mapping LED Strip Fixture
(1) Square milky filter (installed)
(1) Round milky filter
(1) Black stealth filter
(1) Warranty Card
(1) Quick Reference Guide
