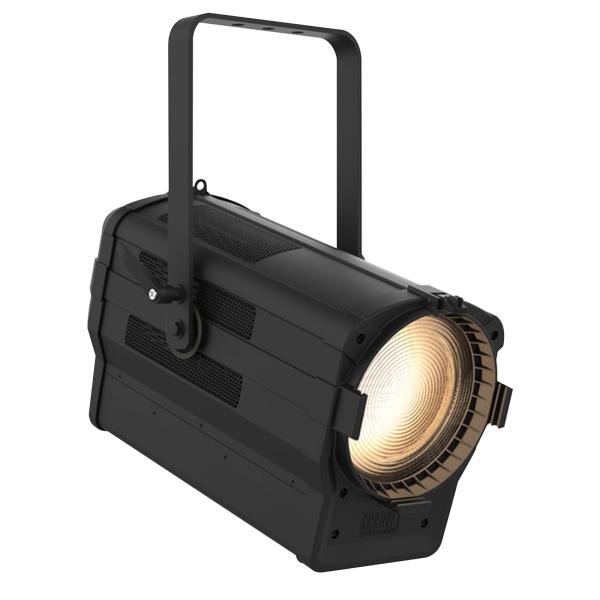

Chauvet Professional Ovation F-915VW Variable White Fresnel-Style Lighting Fixture
SKU
OVATIONF915VW
$1,700.00
Item Backordered
Expected February 28, 2025
Only at IDJNOW
Chauvet Ovation F-915VW Fresnel Light Features:
- Variable white LED Fresnel lighting fixture for theatre, film and production.
- Soft and even field of light.
- Smooth, motorized zoom from 16° to 42° beam angle.
- Color Temperature Presets from 2800 K to 8000 K with high CRI and CQS.
- Beautiful 16-bit dimming.
- Proprietary LED engine delivers tremendous, equal output at all color temperatures.
- Easy to use on board control of color temperature, zoom and dimming.
- +/- Green adjustment via DMX or on-board control.
- Independent color control over the 6-color engine when a splash of color is needed.
- RDM (Remote Device Management) for added flexibility.
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.
- Virtually silent operation for use in studio and theatre applications.
Chauvet Ovation F-915VW Specifications:
Optical
Light Source: 89 LEDs (6 red, 15 orange-red, 8 green, 12 blue, 16 royal blue, 32 lime) 3 W, (960 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 88-92
Beam Angle: 17° to 54°
Field Angle: 30° to 85°
Zoom Angle: 30° to 85°
Lumens (30°): 4,143
Lumens (85°): 6,792
Illuminance (30°): 1,748 lux @ 5 m
Illuminance (85°): 414 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Zoom: Motorized
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: No
Construction / Physical
Dimensions: 22.41 x 12.59 x 10.82in (569.44 x 320 x 275 mm)
Weight: 18.6 lb (8.5 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 4, 6, 7, 9, 13, 16 or 18
Modes/Personalities: 8 personalities (1, 4, 6, 7, 9, 13, 16, 18)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
Power and Current: 216 W, 1.8 A @ 120 V, 60 Hz [7 A inrush]
Power and Current: 220 W, 1.1 A @ 208 V, 60 Hz [7 A inrush]
Power and Current: 223 W, 1 A @ 230 V, 50 Hz [7.8 A inrush]
Power and Current (resting): 6 W, 0.050 A @ 120 V, 60 Hz
Power and Current (resting): 11 W, 0.054 A @ 208 V, 60 Hz
Power and Current (resting): 9 W, 0.036 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
Temperature (startup): -4 °F to 113 °F (-20 °C to 45 °C)
Temperature (operating): -22 °F to 113 °F (-30 °C to 45 °C)
(1) Chauvet Professional Ovation F-915VW Variable White Fresnel-Style Lighting Fixture
(1) Neutrik powerCON power cord
(1) Gel frame (7.5 in/191 mm accessories)
