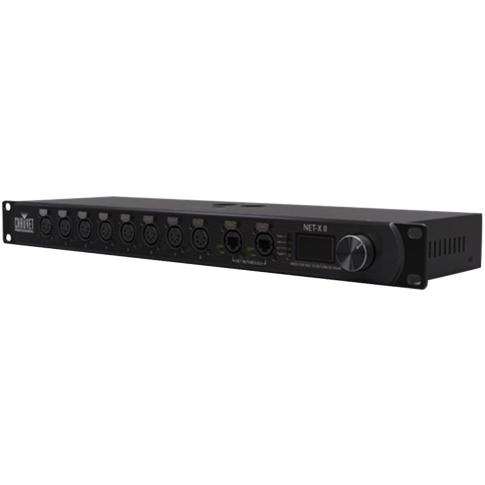

Chauvet Professional Net-X II Rack Mount DMX / Ethernet Merger and Node Splitter - Store Demo
Expected May 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews
30-Day Returns
Don't Like it? Return it.
Net-XII is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs - all optically isolated, and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs or the Ethernet inputs to mix network inputs with DMX inputs in a single device. LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library, while providing experts with a highly customizable network infrastructure for complex control systems.
Chauvet Professional Net-X II Rack Mount DMX / Ethernet Merger and Node Splitter Features:
- 5-pin DMX splitter/distributor.
- Art-Net/sACN to DMX converter, up to 8 universes.
- DMX to Art-Net/sACN converter, up to 8 universes.
- Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs.
- HTP (highest takes priority) and LTP (latest takes priority) merge functions supported.
- Backup settings and configurations with same or other NET-X IIs.
- Webserver supported for remote configuration and backup/update.
- Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones simultaneously using the 5-wire Phoenix cold contacts on the rear of the unit.
- Supports RDM over Art-Net.
Specifications:
Construction / Physical:
Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)
Weight: 4.6 lb (2.1 kg)
Threaded Bolt: M12
Exterior Color: Black
Housing Material: Steel
Rackmount: 1U
Connection:
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Device Data Inputs: Neutrik etherCON (1 total) and 5-pin XLR (2 total)
Device Data Outputs: 5-pin XLR (8 total)
Device Date Throughputs: Neutrik etherCON (1 total)
Cable Length (power): 5 ft (1.5 m)
Control:
Control Protocol: Art-Net, DMX, sACN
Merge Support: Yes
Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles
Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz
Certifications / Qualifications:
CE
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Each Net-X II Retail Box Includes:
(1) Chauvet Professional Net-X II Rack Mount DMX / Ethernet Merger and Node Splitter
(1) Neutrik powerCON power cord
(1) Phoenix connector
(1) User Manual
(1) Warranty Card
*Please note: Customer return/Store display items are not brand new and may have minor imperfections. Due to the nature of a "Customer return item" we cannot guarantee that all box components listed, will be included. Because of this, the item is discounted accordingly and sold at close to cost or below. IDJNOW does guarantee that you will receive all pertinent components for the item to function in Its most basic form (usually just a power cord) and guarantees the item to be free from defect for 30 days from the day you receive it.
