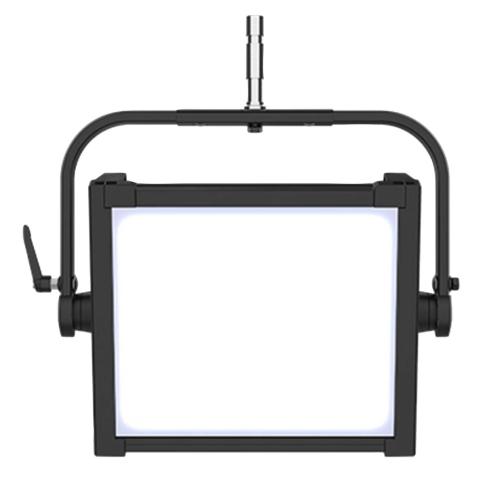

onAir Panel 1 IP is a rugged IP65, full-spectrum LED soft light with a 1×1 format that is capable of facing all of the elements, outdoors or in. Ready to go on-location for any broadcast setting, onAir Panel 1 IP features a superior quality of white light with high CRI/ TLC and TM-30 scores; a smooth 16-bit dimming curve and +/- green adjustment, an emulated redshift, and the ability to produce a pop of color to achieve the exact look you are aiming to create along with built-in, customizable effects accessible from the onboard control menu. Easily switch mounting options from Jr Pin to Omega Bracket on a rugged build, designed with a drop-in slot to ensure ease of use when changing accessories. PWM, DMX, RDM, CRMX, Art-Net, sACN, and an onboard control option ensure camera-ready use. An optional 28 VDC input via 3-pin XLR powers the fixture from an external battery pack to add increased flexibility for all of your remote needs.
Chauvet Professional ONAIRPANEL1IP LED Light Panel Features:
- Full-spectrum LED 1x1 format soft light panel style fixture for broadcast, film, and special events.
- IP65 rating for all weather use indoors or out.
- Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS.
- Virtual color wheel with color matched to popular gel colors.
- +/- Green adjustment and emulated red-shift via DMX or on-board control.
- RDM (Remote Device Management) and CRMX Wireless Control for added flexibility.
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera.
- Virtually silent operation for use in studio applications.
- Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.
- Easily switch mounting options from Jr Pin to Omega Bracket.
- Drop-in slot for diffusers and intensifier filter (sold separately.)
- Rugged design for years of rough use in the most extreme conditions.
- Easy to use on-board control with full access to all the features of the fixture without the need for a dedicated controller.
- USB port for fixture software updates.
- 28 VDC power input via 3-pin XLR to power the fixture from an external battery pack.
Chauvet Professional ONAIRPANEL1IP Product Specifications:
OPTICAL
Light Source: 224 LEDs (tri-color RGB) 1.4 W, (150 mA), 50,000 hours life expectancy.
Light Source: 224 LEDs (WW) 0.50 W, (150 mA), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 7566 K
CRI: 95
Beam Angle: 99.3°
Field Angle: 154°
Lumens: 10,092
Illuminance: 165 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 28 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 22 x 5.74 x 21.81 in (559 x 146 x 554 mm)
Weight: 28 lb (12.7 kg)
Exterior Color: Black
Housing Material: Aluminum alloy
CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Power Input: 28 VDC, 3-pin IP65 XLR
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON Compatible
Cable Length (power): 5 ft (1.5 m)
Software Connection: USB
CONTROL
Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
DMX Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16
Art-Net Channels: 1, 3, 4, 5, 6, 8, 10, 11, 15, 16
Modes/Personalities: 12 personalities (1, 3, 4, 5, 6, 8Ch1, 8Ch2, 10, 11, 15Ch1, 15Ch2, 16)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 100 V; 8 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V, 17 units @ 240 V
Power and Current: 184 W, 1.524 A @ 120 V, 60 Hz
Power and Current: 187 W, .891 A @ 208 V, 60 Hz
Power and Current: 180 W, .824 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
Each ONAIRPANEL1IP Retail Box Includes:
(1) Chauvet Professional ONAIRPANEL1IP IP65 Full-Spectrum LED Soft Light Panel Fixture
(1) Seetronic Powerkon IP65
(1) Omega bracket with mounting hardware
