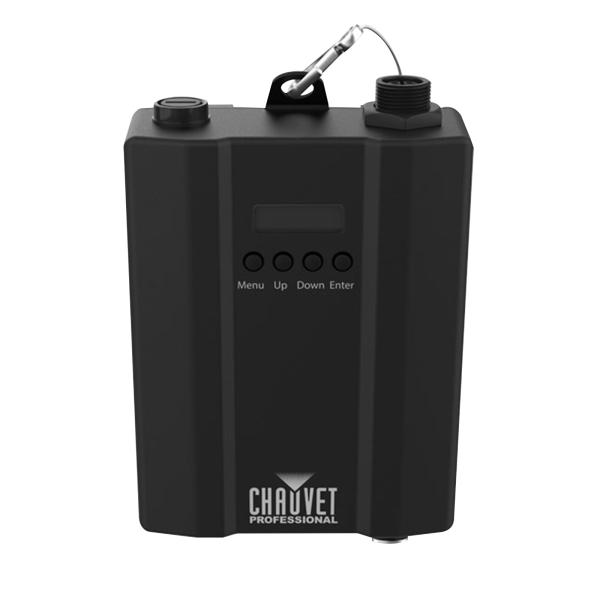

Chauvet Ovation GR-1 Adapter Features:
- Power and data interface to adapt Ovation GR-1IP to any ERS-style fixture.
- Utilize power from powerCON output of the ERS-style fixture.
- Easily secure to the yoke of the ERS-style fixture.
- On-board display for simple manual operation or DMX addressing.
- 5-pin DMX in and thru for easy control from your console.
- Requires Ovation GR-1 IP for operation (sold separately.)
Chauvet Ovation GR-1 Adapter Specifications:
Construction / Physical
Dimensions: 3.7 x 2.1 x 5.3 in ( 95 x 53.1 x 135.7 mm)
Weight: 0.6 lb (0.3 kg)
Exterior Color: Black
Housing Material: High-impact, flame retardant polymer, Steel
Connections
Power Connection: Neutrik powerCON linking
Data Connectors: 5-pin XLR
Cable Length (power): 2ft 6 in (0.792 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 1
Modes/Personalities: 1 personalities (1Ch)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 6 W, .092 A @ 120 V, 60 Hz
Power and Current: 5 W, .063 A @ 208 V, 60 Hz
Power and Current: 5 W, .060 A @ 230 V, 50 Hz
Certifications / Qualifications
CE
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
(1) Chauvet Professional Ovation GR-1 Adapter for the Outdoor Rated Ovation GR-1 IP Gobo Rotator
(1) Neutrik powerCON power linking cord
