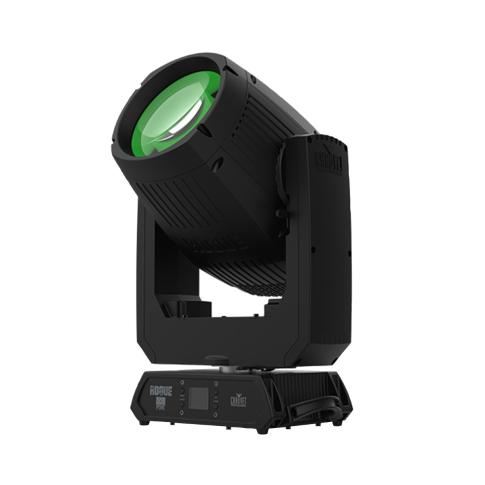

Chauvet Professional Rogue Outcast 1L Beam Fully-Featured Lightweight IP65-Rated LED Beam Fixture
Most orders placed by 2pm ET ship in 2-3 business days
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews>
30-Day Returns
Don't Like it? Return it.
Rogue Outcast 1L Beam is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layerable dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.
Chauvet Professional Rogue Outcast 1L Beam Fixture Features:
- Fully featured, high powered IP65 rated LED beam fixture.
- Lightweight and durable aluminum/magnesium alloy body.
- Fast and precise movement of pan and tilt functions.
- Individually controllable and layerable 5- and 8-facet prisms.
- Frost for softening beam edges and effects.
- 5-pin DMX input/output connections.
- Tight 1.4° beam for extremely focused areal effects.
- RDM enabled for remote addressing and troubleshooting.
- 7 rotating and 7 static gobos on one wheel for dynamic gobo effects.
- Easy to read OLED display with simple, effective menu options.
- Simple and complex DMX channel profiles for programming versatility.
- USB-C port for uploading software.
Chauvet Professional Rogue Outcast 1L Beam Product Specifications:
Optical:
Light Source: 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
Color Temperature (at full): 6928 K
Front lens diameter: 160 mm
CRI: 69.3
Beam Angle: 1.4°
Field Angle: 1.7°
Cutoff Angle: 1.8°
Lumens - Source: 5500
Lumens - Output: 3218
Illuminance (total) : 224,670 lux @ 5 m
Dynamic Effects:
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 5 Facets, motorized, linear, rotating
Prism: 8 Facets, motorized, round, rotating
Move-in-Black: Yes
Construction/Physical:
Dimensions: 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
Weight: 35.4 lb (16.1 kg)
Exterior Color: Black
Housing Material: Aluminum/Magnesium diecast
Connections:
Power Connection: Bare ended to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated
Cable Length (power): 5 ft (1.5 m)
Control:
Control Protocol: DMX, RDM
DMX Channels: 17 or 19
Modes/Personalities: 2 personalities (17, 19)
Electrical:
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 233 W, 2.08 A @ 120 V, 60 Hz
Power and Current: 226 W, 1.15 A @ 208 V, 60 Hz
Power and Current: 223 W, 1.04 A @ 230 V, 50 Hz
Certifications/Qualifications:
CE, MET, UKCA
IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (ta): 45° C / 113° F
Each Rogue Outcast 1L Beam Retail Box Includes:
(1) Chauvet Professional Rogue Outcast 1L Beam Fully-Featured Lightweight IP65-Rated LED Beam Fixture
(1) Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware
