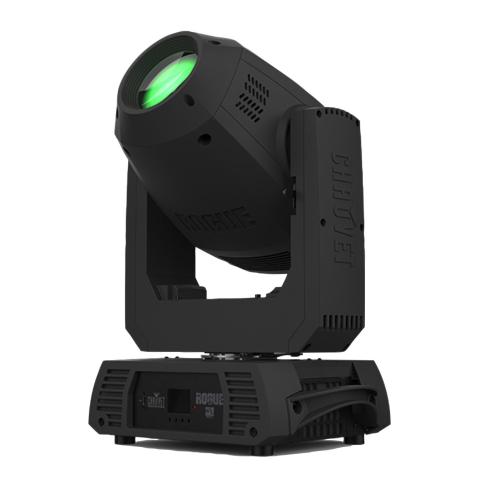

Chauvet Professional ROGUE R1E Spot 200W LED Compact Lightweight Moving Yoke Spot
Most orders placed by 2pm ET ship in 2-3 business days
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews>
30-Day Returns
Don't Like it? Return it.
Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a color wheel with eight brilliant colors + white + split colors.
Chauvet Professional ROGUE R1E Spot Moving Yoke Spot Features:
- A fully featured compact and light weight moving yoke spot fixture.
- Intense 200 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and a color wheels.
- 16-bit dimming of master dimmer for smooth control of fades.
- Perfect gobo morphing between gobo wheels.
- Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
- Iris, 3-facet prism, and frost for beam control.
- True 1 compatible power input/output connections for power linking.
- 3- and 5-pin DMX input/output connections.
- RDM enabled for remote addressing and trouble shooting.
- Selectable LED maximum output to match legacy Rogue R1X Spots.
- Selectable PWM settings to maintain flicker-free operation on camera.
- Simple and complex DMX channel profiles for programming versatility.
Chauvet Professional ROGUE R1E Spot Product Specifications:
Optical
Light Source: 1 LEDs (CW) 200 W, (3.2 A), 7423 K, 50,000 hours life expectancy
Color Temperature (at full): 7423 K
Front lens diameter: 90mm
CRI: 68
Beam Angle: 15.3°
Field Angle: 18.7°
Cutoff Angle: 20.3°
Lumens – Source: 17,900
Lumens – Output: 12,210
Illuminance (total): 9,021 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2000 Hz, 4000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 270° pan/270°, 180°, 90° tilt
Colors: 8 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating); size: 20 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 22 Hz
Move in Black: Yes
Construction/Physical
Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
Weight (single unit): 31.2 lb (14.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
Software update: USB-C
Connections
Power Connection: Edison (local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 17 or 20
Modes/Personalities: 2 personalities (17, 20)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V
Power and Current: 315 W, 2.63 A @ 120 V, 60 Hz
Power and Current: 306 W, 1.50 A @ 208 V, 60
Power and Current: 303 W, 1.36 A @ 230 V, 50 Hz
Certifications/Qualifications
CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Each ROGUE R1E Spot Retail Box Includes:
(1) Chauvet Professional ROGUE R1E Spot 200W LED Compact Lightweight Moving Yoke Spot
(1) Seetronic Powerkon Power Cable
(2) 140D Omega Brackets with Mounting Hardware
(1) Quick Reference Guide
