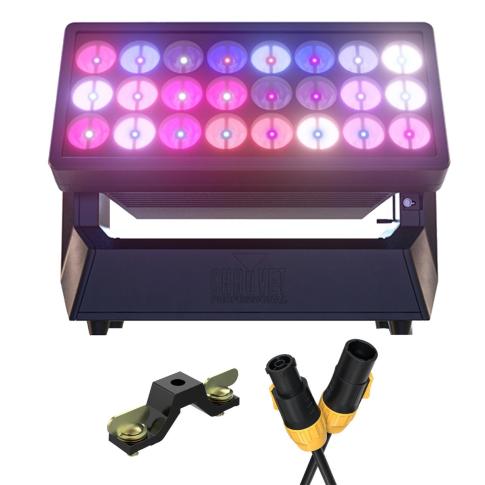

Chauvet Professional STRIKE V IP65-Rated Dual Layer Hybrid Strobe/Wash Fixture
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews>
30-Day Returns
Don't Like it? Return it.
Chauvet Professional's newest STRIKE design introduces dynamic dual-layer pixel effects with a punchy flair that brings totally new and unique looks to the tour-proven STRIKE family of IP65-rated strobes and blinders. STRIKE V features dual LED diodes, under a variable electronic frost plate that can change beam angles instantly at the press of a button, and together offer fresh new multicolor creative possibilities. Advanced eye-candy effects, vibrant color washes, and stunning strobe capabilities from a motorized 180° tilting strobe/wash hybrid designed for powerful performance in the most demanding applications and conditions.
Chauvet Professional STRIKE V Hybrid Fixture Features:
- Fully featured, high-power, 180° tilting hybrid strobe/wash with IP65 rating for all-weather use.
- 48 individually controllable pixels across two layers of LEDs.
- Variable electronic frost for added eye candy effects.
- Included magnetically attachable stealth filter for hiding the LEDs when not in use.
- Multiple mounting locations and repositionable yoke with ¼ turn adaptors for creative and convenient rigging options in vertical and horizontal orientations.
- RDM control over DMX for fixture reporting.
- 16-bit dimming of master dimmer for smooth control of fades.
- Easy-to-use OLED display.
- Rugged design for years of rough use in the most extreme conditions.
- Adjustable Pulse Width Modulation (PWM) for added flexibility.
- USB port for fixture software updates.
- Built-in alignment pins to insure perfectly straight linear arrays.
- Failsafe Ethernet connectivity allows for data to pass even if fixture power is lost.
Chauvet Professional STRIKE V Product Specifications:
Optical
Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy
Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy
Beam Angle (Combine): 9.9°
Beam Angle (Dot): 105.7°
Beam Angle (Cell): 9.9°
Beam Angle (w/E-Frost Combine): 50.3°
Beam Angle (w/E-Frost Dot): 103.1°
Beam Angle (w/E-Frost Cell): 46.8°
Field Angle (Combine): 17.6°
Field Angle (Top Plate): 153.1°
Field Angle (Cell): 17.5°
Field Angle (w/E-Frost Combine): 125°
Field Angle (w/E-Frost Dot): 155.6°
Field Angle (w/E-Frost Cell): 117.2°
Lumens (Combine): 19,589
Lumens (Dot): 1,912
Lumens (Cell): 17,127
Lumens (w/E-Frost Combine): 13,406
Lumens (w/E-Frost Dot): 1,633
Lumens (w/E-Frost Cell): 15,769
Illuminance (Combine): 16,779 lux @ 5 m
Illuminance (Dot): 29 lux @ 5 m
Illuminance (Cell): 16,789 lux @ 5 m
Illuminance (w/E-Frost Combine): 539 lux @ 5 m
Illuminance (w/E-Frost Dot): 26 lux @ 5 m
Illuminance (w/E-Frost Cell): 536 lux @ 5 m
Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz
Dynamic Effects
Tilt: 180°
Tilt Ranges: 0° to 180°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 30 Hz
Standalone Color Mixing: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction/Physical
Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
Weight: 36 lb (16.3 kg)
Exterior Color: Black
Housing Material: AZ91D Magnesium diecast
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: Art-Net, DMX, RDM, sACN
DMX, ArtNet, and sACN Channels single mode 29,222,314
DMX, ArtNet, and sACN Channels Dual mode Movement: 30
DMX, ArtNet, and sACN Channels Dual Mode Pixels: 144,192,240,288
ArtNet and sACN Channels Multi-Layer Control Movement: 30
ArtNet and sACN Channels Multi-Layer Control Dot Pixels: 72,96,120,144
ArtNet and sACN Channels Multi-Layer Control Cell Pixels: 72,96,120,144
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 747 W, 7.54 A @ 100 V, 60 Hz
Power and Current: 747 W, 6.20 A @ 120 V, 60
Power and Current: 719 W, 3.63 A @ 208 V, 60 Hz
Power and Current: 717 W, 3.28 A @ 230 V, 50 Hz
Power and Current: 717 W, 3.17 A @ 240 V, 50 Hz
Battery
Battery type: Lithium Ion
Rechargeable: Yes
Certifications/Qualifications
CE, MET, ROHS, FCC
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
Each STRIKE V Retail Box Includes:
(1) Chauvet Professional STRIKE V IP65-Rated Dual Layer Hybrid Strobe/Wash Fixture
(1) Seetronic Powerkon IP65 power cord
(1) Omega bracket
(1) Stealth filter
