The electronics package includes a 2000 Wpeak Class D amplifier and 24-bit high-end DSP for exceptional audio reproduction. A unique "Deep-Loud" EQ switch allows users to tailor the bass output to provide a low subwoofer type response using the "Deep" setting or a louder hard hitting performance in the "Loud" setting. On the rear panel, controls can be found for gain, polarity and a continually variable low-pass filter which ranges from 80 Hz to 125 Hz. The VANTEC-118A-W is phase response coherent with the other Vantec Series active tops such as the VANTEC-20A-W offering precise alignment without the need of an external DSP.
DAS Vantec 118A-W 18" White Subwoofer Features:
- Active front-loaded subwoofer system.
- 1 x 18" DAS 18FW loudspeaker.
- Class D amplifier 2000 Wpeak.
- Digital signal processing (DSP.)
- Unique "Deep-Loud" bass EQ switch.
- Variable low-pass filter 80 Hz-125 Hz.
- LED ON/OFF switch on backplate.
- Rigging compatible with VANTEC-20A.
- Top located pole mount socket.
- Concerts and corporate A/V.
- Portable and live clubs.
- Concert halls, theaters and auditoriums.
- Houses of worship.
DAS Vantec 118A-W Specifications:
Performance Frequency Range (-10 dB) 35 Hz – 125 Hz Maximum Peak SPL at 1 m 134 dB Electronics and Connectors Nominal Amplifier Power (continuous) 1000 W Nominal Amplifier Power (peak) 2000 W Input Type Balanced Input Impeadance 20 kohms Input Sensitivity 3 V (+12 dBu) Audio Signal Input Connector 2 x Female XLR Audio Signal Loop Thru Connector 2 x Male XLR AC Input Connector powerCon NAC3FCA AC Output Connector powerCON NAC3FCB Operating Range 90-127/180-250 VAC Current Draw 115 V 4.4 A Current Draw 230 V 2.2 A Enclosure Enclosure Construction Birch Plywood Enclosure Geometry Rectangular Rigging M10 Rigging Points Finish ISO-flex Paint Color White Dimensions ( H x W x D ) 490 x 615 x 785 mm
19.3 x 24.2 x 30.9 inNet Weight 45.2 kg ( 99.4 lb ) Components LF Driver 18FW Shipping Carton Dimensions ( H x W x D ) 730 x 660 x 880 mm
28.7 x 26.0 x 34.7 inShipping Weight 48.0 kg ( 105.6 lb )

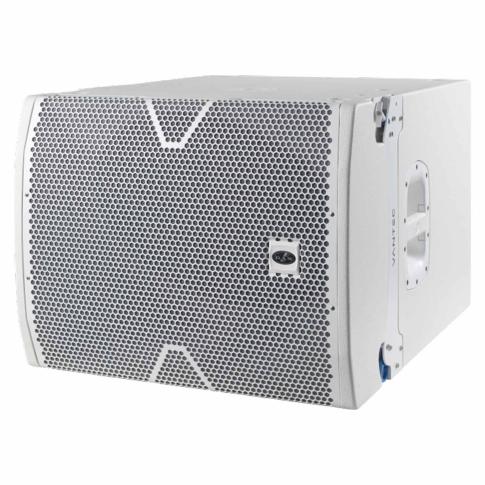

(1) DAS Vantec 118A-W Active 18" High-Output Subwoofer in White
