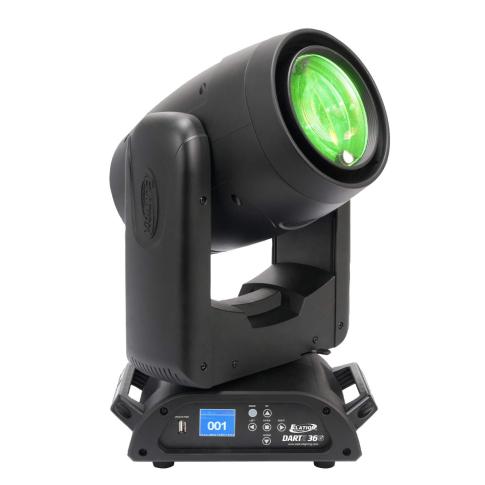

Elation Professional DARTZ 360 50W RGB LED Narrow Beam Luminaire
SKU
DARTZ360
$1,920.00
In Stock - Ships in 3-5 Days
Most orders placed by 2pm ET ship in 3-5 business days
Only at IDJNOW
The DARTZ 360 is a unique, compact, narrow beam luminaire featuring a new patent pending single source 50W RGB LED engine producing an impressive 3° aperture, amazing high output level, and smooth color-mixed effects that can be used in a variety of applications requiring no minimum safe project distance as with typical discharge lamp beam fixtures, fast and precise 16-bit continuous 360° pan and tilt rotation, 14 static-stamped metal gobos, 6-facet linear and 8-facet independent rotating prisms, 0-100% linear frost filter for wash effects, high speed electronic shutter and strobe, electronic dimming and variable dimming curve modes, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX, RDM (Remote Device Management), Kling-Net, Art-NET, and sACN protocol support, Elation's E-FLY internal wireless DMX transceiver, 5pin XLR, RJ45 ethernet, and Locking Power Cable in/out connections, full color 180° reversible menu display with multi-button control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).
Elation Professional DARTZ 360 Narrow Beam Luminaire Features:
- Compact Precise 360° Pan/Tilt Moving Beam Luminaire.
- Patent Pending Single Source 50W RGB LED Engine.
- No Minimum Safe Project Distance Like Discharge Fixtures.
- 3° Sharp Aperture with Motorized Focus.
- Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation.
- 14 Static-Stamped Metal Gobos.
- 6 Linear and 8 Facet Independent Rotating Prisms.
- 0-100% Linear Frost Filter for Wash Effects.
- High Speed Electronic Shutter and Strobe.
- Electronic Dimming and Variable Dimming Curve Modes.
- DMX, RDM, Kling-Net, Art-NET, and sACN Protocol Support.
- Elation's E-FLY Internal Wireless DMX Transceiver.
- Adjustable Refresh Rate Frequency and Gamma Brightness.
- Flicker Free Operation for TV and FILM.
Elation Professional DARTZ 360 Product Specifications:
Source:
Patent Pending 50W RGB LED Engine
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data:
29,562 LUX 2,746 FC @16.4' (5m) (3° Full ON)
Effects:
Motorized Focus
6 and 8 Facet Independent Rotating Prisms
0-100% Linear Frost Filter for Wash Effects
High Speed Electronic Shutter and Strobe
16-Bit Variable Dimming Curve Modes
Adjustable LED Refresh Rate and Gamma Brightness
Color:
RGB Smooth Color Mixing
Gobos:
14 Static-Stamped Metal Gobos
Control/Connections:
(3) DMX Channel Modes (19 / 22 / 25)
360° Continuous Pan and Tilt 8 / 16 Bit Movement
Adjustable Refresh Rate (900-25,000 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
6 Button Menu Control Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Kling-net, Art-NET and sACN Protocol Support
Elation E-FLY Internal Wireless DMX Transceiver
5pin DMX, RJ45 Ethernet In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
Size/Weight:
Length: 11.2" (284.15mm)
Width: 7.7" (195.97mm)
Vertical Height: 17.9" (454.7mm)
Weight: 28.0 lbs. (12.7 kg)
Electrical/Thermal:
AC 100-240V - 50/60Hz
154W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 525.14
Approvals/Ratings:
CE | cETLus | IP20
Each DARTZ 360 Retail Box Includes:
(1) Elation Professional DARTZ 360 50W RGB LED Narrow Beam Luminaire
(2) Omega Brackets
(1) Power Cable
