Elation Professional Netron EN12 Ethernet to DMX Gateway with 12 RDM Compatible Ports
SKU
EN12
$996.00
In Stock - Ships in 3-5 Days
Most orders placed by 2pm ET ship in 3-5 business days
Only at IDJNOW

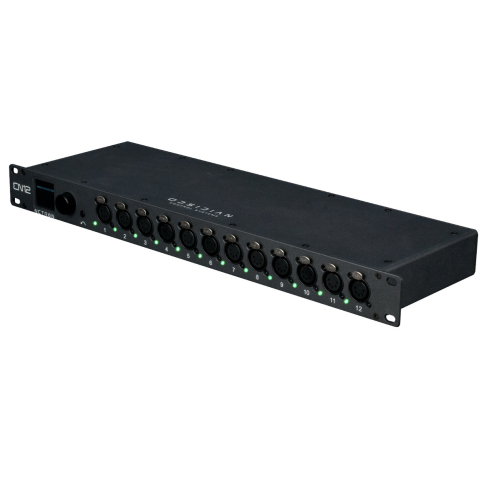

The Netron EN12 is a powerful high-density Ethernet to DMX gateway with twelve RDM compatible ports. Easy to configure with a range of integrated presets plus a wide array of advanced merge and routing features it is the ideal device for live production or installations requiring a lot of physical DMX ports. Contact closures allow for recall of presets, routings, mergers or any of the internal cues.
Elation Professional Netron EN12 Ethernet to DMX Gateway Features:
- RDM, Artnet and sACN support.
- Factory and user presets for plug and play setups.
- Line Voltage or POE powered.
- 1.8" OLED Display with rotary knob.
- 99 Internal cues with fade and delay time.
- Customizable routing and merging options.
- Remote configuration via internal webpage.
- Contact closures for cue or preset recall.
- Powder-coated aluminum rackmount housing.
Elation Professional Netron EN12 Product Specifications:
Mounting:
Rackmount
Front Connections:
(12) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder with Push to Select / Exit Button
Back Connections:
(2) Locking RJ45 Ethernet network In
(10) Contact Closures (Terminal Block)
Locking Power In/Thru
Physical:
Length: 482.5 mm (19 in.)
Width: 146 (5.7mm)
Height: 44 mm (1.7 in.)
Weight: 1.82 kg (4 lbs.)
Electrical:
100-240 V nominal, 50/60 Hz
POE 802.3af
Approvals/Ratings:
CE | cETLus | FCC | IP20
Each EN12 Retail Box Includes:
(1) Elation Professional Netron EN12 Ethernet to DMX Gateway with 12 RDM Compatible Ports
