Elation Professional KL Panel Full-Color Spectrum LED Soft Light Fixture

Name: Elation Professional KL Panel Full-Color Spectrum LED Soft Light Fixture
Brand: Elation Professional
SKU: KL-PANEL
Price: 2240 USD
Availability: InStock

SKU

KL-PANEL

$2,240.00

In Stock - Ships in 3-5 Days

Most orders placed by 2pm ET ship in 3-5 business days

Only at IDJNOW

Fast Shipping

Most products ship same-day

30-Day Price Protection

Find a lower price, you're covered.

6000+ Reviews

95%+5-star reviews

30-Day Returns

Don't Like it? Return most items.

Recently Viewed

Details

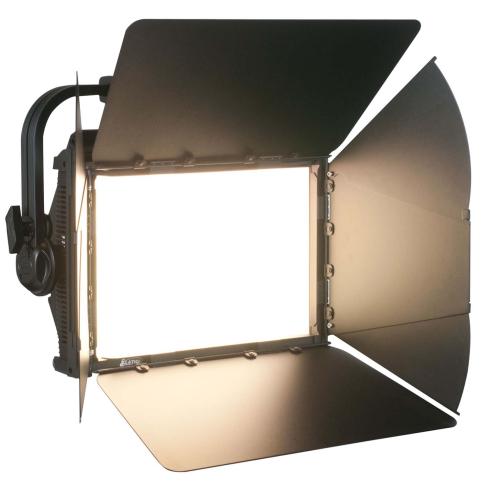

The KL PANEL is a full-color-spectrum LED soft light providing high output, precise color rendering and even washes. Optimized for the tunable white light requirements of film and TV, it is an ideal light source for many situations requiring outstanding performance and color quality. The KL PANEL incorporates a highly efficient 6-in-1 LED package that produces over 16,000 field lumens. Compact and portable, the fixture can be mounted on stands or suspended using the included Junior pin or any regular clamp. It is fully self-contained without the need for external power supplies. Multiple protocol and control options provide fast and efficient operation in any situation. Direct control, remote DMX or Ethernet connections, as well as Elation's E-FLY wireless system, allow for flexibility of use.

Elation Professional KL Panel LED Soft Light Features:

295W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array.
CRI 95, CCT Adjustment from 2,000 to 10,000K.
16,000 Total Lumen Fixture Output.
Internal Power Supply with Power Pass-Through.
24-36 VDC Battery Operation (battery not included.)
DMX, RDM, Art-NET, and sACN Protocol Support.
E-FLY Internal Extended Range Wireless DMX Transceiver.
Stand-Alone Control with 3 Encoders and an OLED Display.
Barn Doors, Diffuser, and Junior Pin (1 1/8" - 28mm) Included.

Tech specs

Elation Professional KL Panel Specifications:

Source
6-in-1 (Red, Green, Blue, White, Lime, Cyan) LED Array
50,000 Hour Average LED Life
Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data
16,000 Total Lumen Fixture Output
64° Beam Angle (with diffuser)

Effects
Variable CCT 2,000K - 10,000K
GreenShift Adjustment
Virtual Gel Library
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Remote Adjustable LED Refresh Rate Frequency
(900-25kHZ)

Control / Connections
9 DMX Channel Modes
3x Manual Adjustment Encoders
4 Button Control Panel and OLED Menu Display
DMX, RDM, Art-NET, sACN Protocol Support
E-FLY Internal Extended Range Wireless DMX Transceiver
Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
USB Connection (Firmware Updates)
4pin XLR External Battery Connection (battery not included)
With Wired Digital Communication Network

Size / Weight
Length: 20.8" (528mm)
Width: 5.5" (140.5mm)
Height: 16.3" (415.2mm)
Weight: 28.6 lbs. (13 kg)

Electrical / Thremal
AC 100-240V - 50/60Hz
24-36 VDC (battery operation - battery not included)
Max Power Consumption 295W
14°F to 113°F (-10°C to 45°C)

Approvals / Ratings
CE | cETLus (pending) | IP20

What's In The Box

Each KL Panel Retail Box Includes:

(1) Elation Professional KL Panel Full-Color Spectrum LED Soft Light Fixture
(1) Set of Barn Doors
(1) Diffuser
(1) Junior Pin (1 1/8" - 28mm)
