Be the first to review this product
SKU
ELX200-15-W
$649.00
Item Backordered
Expected January 31, 2025
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components-tested to levels far exceeding the industry norm-make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors' products in its category. Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept. EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system's highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Perfect for both portable and installed applications. Next-generation enclosures offer a step up in both styling and build quality. Full-range models feature lightweight, compact composite enclosures with internal reinforcement, designed to minimize resonance and increase rigidity and strength. With the lightest 18-inch wood powered sub on the market, and a stunning 10-inch top / 12-inch sub compact combo available to serve smaller venues, there are options available for every application. Professional-grade hardware includes three M10 threaded suspension points for forged eyebolts, integrated pole-mounts, and our proven three-handle design for easy lifting. Heavyweight performance in a lightweight package. Though ELX200 is easy to carry, its tough construction and components ensure legendary EV durability and sound quality, night after night. System reliability is verified with over 500 hours of abuse and endurance testing - far above and beyond industry norms. Super-efficient Class-D power amplifiers deliver distortion-free maximum SPLs utilizing high-sensitivity transducers - all designed and engineered by Electro-Voice. Electro-Voice-patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance. The design allows for a larger waveguide, which is placed forward in the enclosure to time-align the woofer and the tweeter, providing exceptionally precise and consistent coverage - all with deeper, tighter bass response.
Perfect for both portable and installed applications. Next-generation enclosures offer a step up in both styling and build quality. Full-range models feature lightweight, compact composite enclosures with internal reinforcement, designed to minimize resonance and increase rigidity and strength. With the lightest 18-inch wood powered sub on the market, and a stunning 10-inch top / 12-inch sub compact combo available to serve smaller venues, there are options available for every application. Professional-grade hardware includes three M10 threaded suspension points for forged eyebolts, integrated pole-mounts, and our proven three-handle design for easy lifting. Heavyweight performance in a lightweight package. Though ELX200 is easy to carry, its tough construction and components ensure legendary EV durability and sound quality, night after night. System reliability is verified with over 500 hours of abuse and endurance testing - far above and beyond industry norms. Super-efficient Class-D power amplifiers deliver distortion-free maximum SPLs utilizing high-sensitivity transducers - all designed and engineered by Electro-Voice. Electro-Voice-patented SST (Signal Synchronized Transducer) waveguide design combines a more compact footprint with enhanced acoustic performance. The design allows for a larger waveguide, which is placed forward in the enclosure to time-align the woofer and the tweeter, providing exceptionally precise and consistent coverage - all with deeper, tighter bass response.

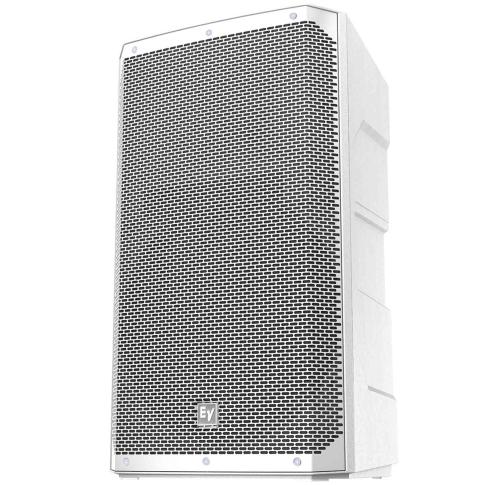

Electro-Voice ELX200-15-W 15" White Passive Speaker Features:
- 1200 W (peak), 130 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
- 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
- High-output EVS-15M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.
Electro-Voice ELX200-15-W Specifications:
Available Color: WhiteAxial Sensitivity (SPL, 1 W @ 1 m): 95dB
Connector Type: Dual NL4
Coverage (Nominal -6 dB) H: 90°
Coverage (Nominal -6 dB) V: 60°
Crossover Frequency: 1.6 kHz
Depth: 15.12" (384mm)
Enclosure Material: Polypropylene composite
Family: ELX200
Frequency Range (-10 dB): 52 Hz - 19 kHz
Frequency Response (-3 dB): 77 Hz - 16 kHz
Grille: 18 AWG steel with powdercoat
Height: 27.95" (710mm)
HF Transducer: DH-1C 1-inch titanium compression driver
LF Transducer: EVS-15M 381 mm (15 in)
Max. SPL/1m (calc): 130dB
Minimum Impedance: 7.0Ω
Nominal Impedance: 8Ω
Power Handling (Continuous / Peak): 300W/1200W
Power Rating: 1200W
Recommended High-Pass Frequency: 42Hz
Shipping Weight: 47.18lbs (21.4kg)
Speaker Type: Full-Range
Suspension: (3) M10 suspension points
Weight Net: 41.23lbs (18.7kg)
Width: 16.65" (423mm)
Woofer Size: 15inch
