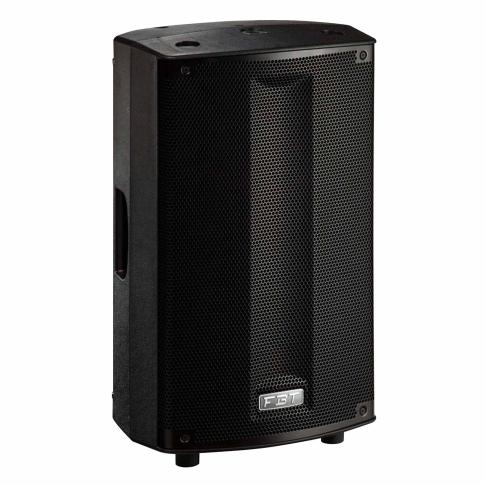

FBT ProMaxX 110a Processed Active 2-Way Composite Speaker with 10" 700W RMS + 1" 200W RMS 131DB SPL

The FBT ProMaxX 110a is a 2-way biamplified bass reflex design cabinet. With a specially developed polypropylene cabinet and stylish full grille aesthetic, the FBT ProMaxX 110a represents the next step in the evolution of a portable sound classic. The FBT ProMaxX 110a incorporates a 10" LF woofer with 2" voice coil, custom made for FBT and 1" exit throat B&C HF compression driver with 1/4" voice coil; with a constant directivity horn (90° H x 60° V) ensure accurate coverage and with a frequency range from 58HZ to 20 kHz, the FBT ProMaxX 110a speaker provides high fidelity sound for both speech and music applications with a maximum SPL of 131 dB. Low frequencies are driven by a highly efficient 700W RMS Class D topology, operating with extremely low THD; for HF 200 W RMS is delivered via a Class H/AB design. Onboard is a powerful digital signal processing platform; a total of 6 pre-optimized settings are available, plus 2 further slots for users to form their own designs, using 5 parametric equalizers per slot. The two M10 suspension points along with the optional mounting bracket allow the FBT ProMaxX 110a speaker ti be surface mounted on wall of ceiling and a standard 1.38" speaker stand socket allows the FBT ProMaxX 110a to be mounted to a speaker stand.

FBT ProMaxX 110a Active 2-Way Composite Speaker Features:

• 2-way, bi-amplified, bass reflex design cabinet.
• Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies.
• Digital signal processor with graphic display.
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push.
• 2 x M10 suspension points, 35 mm (1.3/8") top-hat speaker stand socket, wall bracket mount flange plate.
• 90°H x 60°V constant directivity horn.
• Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles.
