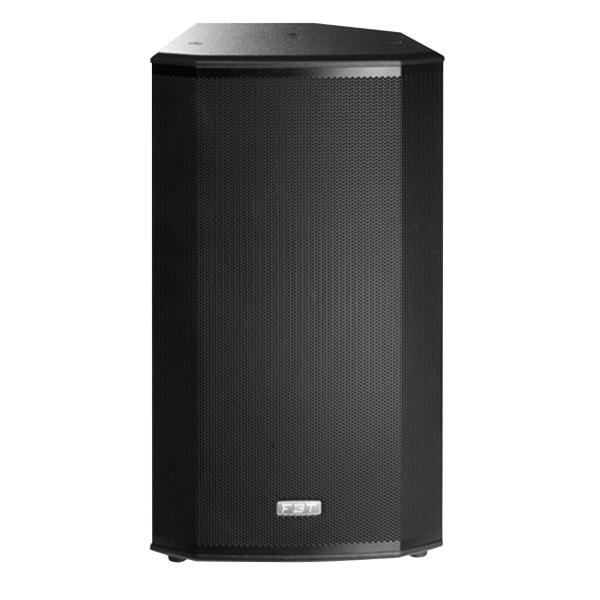

FBT VENTIS 112A Processed 2-Way Active 12" Speaker

The VENTIS range by FBT comprises 5 versatile loudspeakers for either portable use or fixed installation. Available in bi-amplified or passive versions, each model was designed to meet the highest standards in both performance and aesthetic appeal. VENTIS 206 can be used as sound reinforcement, as an under-balcony system, as a main source for speech for its high intelligibility or simply as the full-range companion of a subwoofer.

All VENTIS models are equipped with a switching amplification module designed in Italy. The Class D integrated power amplifier for low frequencies supplies 700W RMS. For high frequencies, the amplifier section is Class HAB (200W RMS). A digital signal processor (DSP) is fitted inside and equipped with an intuitive graphical interface; situated on the rear panel, the DSP display shows all the menu choices, which can be edited via a single knob with push-to-select features. Made from birch plywood, they have a profile tilted at 45° for positioning on stage as a monitor, with various anchoring points and the option of being wall-mounted by means of a U-bracket.

FBT VENTIS 112A Processed 2-Way Active 12" Speaker Features:

• 2-way, bi-amplified, bass reflex design.
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF.
• Digital Signal Processor with graphic display.
• 15 mm (0.59") birch plywood scratch resistant enclosure and internal bracing.
• High efficiency switch mode power supply.
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push.
• 320mm (12") LF woofer with 64mm (2.5") voice coil, custom made for FBT.
• 25mm (1") exit throat B&C HF compression driver with 36mm (1.4") voice coil.
• Frequency response from 48Hz to 20 kHz.
• 80°H x 50°V Constant Directivity Rotatable Horn.
• 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8") top-hat.
• Speaker stand socket, two aluminium handles.
• 45° monitor taper.
