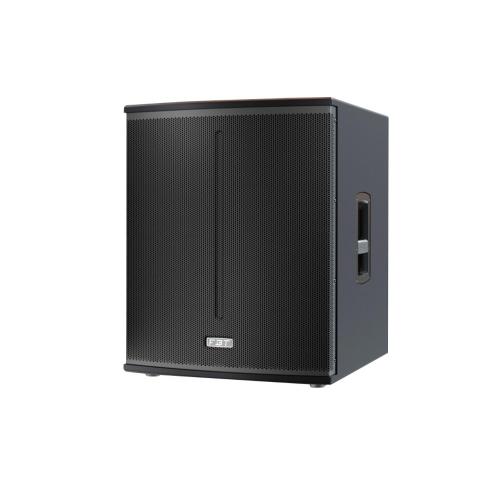

FBT X-SUB 118SA Processed Compact Bass Reflex Active 18" Subwoofer
SKU
X-SUB-118SA
Special Price $1,073.40 Regular Price $1,399.00
In Stock - Ships in 1-2 Days
Most orders placed by 2pm ET ship in 1-2 business days
Only at IDJNOW
The FBT X-SUB 118SA , 1 x 18" bass-reflex design subwoofer, is the perfect low frequency extension and the ideal companion for the FBT X-LITE and FBT X-PRO series. The FBT X-SUB 118SA provides the following performance criteria: frequency response of 38Hz to 120Hz @ -6dB, maximum SPL of 136 dB peak, 1200W Class D amplifier. The FBT X-SUB 118SA provides a DSP processor with 4 presets (2 responses with 2 different cut-off frequencies).
The FBT X-SUB 118SA feature 0,70" birch plywood construction with scratch resistant black paint finish with M20 top mounted stand adapter, two FBT design aluminium handles and four optional 100mm/3,93" transport wheels. The control panel provides two channels with stereo combo XLR/jack in-outs, stereo XLR HP filter outs, level control, preset switch, 0°/180° phase reversal switch, prt-lmt led indicators.
FBT X-SUB 118SA Compact Bass Reflex 18" Subwoofer Features:
- Active subwoofer.
- 18mm / 0.70" birch plywood cabinet.
- 18" woofer / 3" voice coil.
- 1200W RMS Class D power amplifier.
- 4 DSP presets.
- Frequency response 38Hz - 120Hz.
- M20 top mount speaker stand socket Optional 100mm / 3.93" transport wheels.
FBT X-SUB 118SA Product Specifications:
Applications
Permanent installations in: Theatres, Concert halls, Clubs, Places of Worship, Conference rooms, Indoor sports, Arenas and Stadiums.
Sound reinforcement for live events: Touring, Bands, Orchestras.
Designed as the perfect partner for the FBTX-LITE and X-PRO series
Electrical Performance
System Type: bass reflex
Internal Amplifier: 1200W
Imput Impedance: 22 kOhm
Frequency Response: 38Hz - 120Hz (@-6dB)
Maximum SPL Peak: 136dB half space
Dispersion: omnidirectional
AC Power Requirement: 600 W
Physical
Low Frequency Woofer: 18" / 3" coil
Input Connectors: XLR with loop
Net Dimensions (WxHxD): inch 20.07 x 25.78 x 24.80, mm 510 x 655 x 630
Net Weight: 74,95 lbs / 34kg
Enclosure Material: Plywood
Grille: Steel with powder coat black paint finish
Power Cord: 16.4ft / 5mt
Each X-SUB 118SA Retail Box Includes:
(1) FBT X-SUB 118SA Processed Compact Bass Reflex Active 18" Subwoofer
