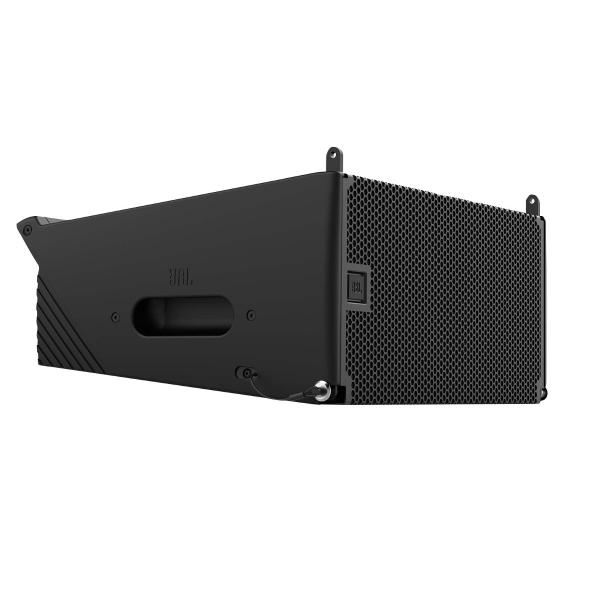

JBL SRX906LA Dual 6.5" Powered Line Array Speaker, 2-Way, 120-Degree

SKU
SRX906LA
$2,229.00

Item Backordered

Expected December 31, 2024

Only at IDJNOW

Fast Shipping

Fast Shipping

Most products ship same-day

30-Day Price Protection

30-Day Price Protection

Find a lower price, you're covered.

5000+ Reviews

6000+ Reviews

95%+5-star reviews

30-Day Returns

30-Day Returns

Don't Like it? Return most items.

The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability. The SRX906LA is a compact, two-way, active line array element that can cover a variety of small- to mid-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.

JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 6.5-inch neodymium Differential Drive woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight. An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. A new, full-featured software package gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

JBL SRX906LA Dual 6.5" Line Array Speaker  Features:

    • High-performance, high-density system solution in a truck-pack friendly format.
    • High-power-handling transducers deliver low distortion, high fidelity, and class-leading output.
    • Built-in, passively cooled Class D amplification with a universal power supply.
    • Dual Ethernet ports with Neutrik etherCON connectors.
    • Supports HARMAN HControl Ethernet.
    • User-controllable DSP.
    • LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers.
    • Rear-panel LCD provides complete access to control features.
    • Reinforced composite loudspeaker enclosures.
    • Innovative three-point rigging system.

JBL SRX906LA Product Specifications:
Frequency Range (-10dB)   63 Hz-17 kHz (array preset)
Coverage Pattern 120 degrees nominal (500 Hz-16 kHz)
Max SPL 134 dB
System Type Line Array, two-way active
Amplifier Design Class-D
Continous Power Rating 600 Watts | LF: 400 Watts | HF: 200 Watts
LF Driver (2) JBL 2186G, 6.5 in diameter, dual 2.0 in voice coil, neodymium Differential Drive
HF Driver (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
Inter-Enclosure Angles 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Enclosure Polypropylene, four integral recessed handholds
Dimensions (H x W x D) 243 mm x 507 mm x 420 mm
(9.5 in x 19.9 in x 16.5 in)
Net Weight (each) 16.8 kg (37 lbs)

Each SRX906LA Retail Box Includes:

(1) JBL SRX906LA Dual 6.5" 2-Way 120-Degree Powered Line Array Speaker
(1) Neutrik NAC3FX-W-TOP
(1) Neutrik NAC3MX-W-TOP
