Be the first to review this product
SKU
LDS-EB122AG3
$949.99
In Stock - Ships in 2-3 Days
Most orders placed by 2pm ET ship in 2-3 business days

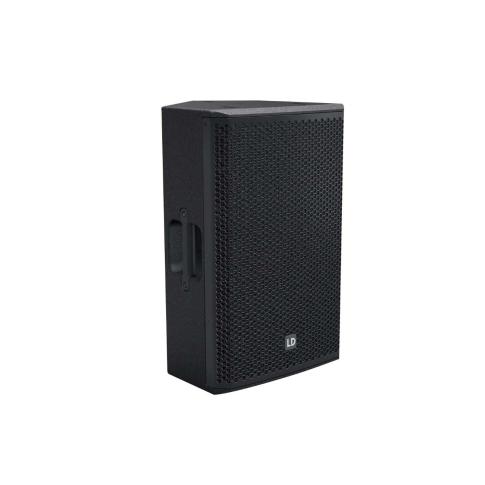

This highly professional 2-way active system is designed for absolute, long-term reliability. With its multi-functional bass reflex housing and finely tuned, user-friendly presets, the speakers are suitable as full-range, box, satellite and floor monitors. The STINGER 12 A G3 is powered by a highly efficient Class-D amplifier with an impressive 500-watt continuous output. The specially developed 12" woofer and a BMS tweeter driver achieve a deep bass response and fresh, natural trebles. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflection from floors and ceilings and prevents sidelobe levels, thus achieving controlled and homogeneous dispersion. LD Systems' proprietary DynX DSP technology means that the STINGER 12 A G3 delivers perfect performance with maximum clarity and power under all conditions. The signal processing of the crossover function and the multi-band limiter achieve an optimal runtime and high freedom from distortion. Designed as an all-around workhorse, the housing of the speaker is made of robust birch plywood. An extremely resilient coating of polyurea offers exceptional robustness and durability. The features include a steel front grille, a dual-tilt stand attachment, flight points and ergonomic handles. The STINGER 12 A G3 is a good value and attractive solution for professional sound systems, with extensive accessories that support usage on the stage and in fixed installations.
LD Systems LDS-EB122AG3 STINGER 12 A G3 12" Speaker Features:
- Active 12" 2-way bass-reflex PA speaker.
- 131 dB max. SPL and 500-watt RMS performance with a highly-efficient digital amplifier.
- Perfect all-rounder for full-range, satellite and monitor applications.
- Practical presets for fast and user-specific frequency tuning.
- Homogeneous dispersion pattern thanks to a BEM-optimized tweeter wave guide.
- 12" custom woofer and BMS tweeter driver.
- Distortion-free sound at even maximum volumes, thanks to DynX DSP technology.
- 2 line/mic input channels with individual gain controllers plus mono mix output.
- 15 mm birch plywood housing with ultra-robust polyurea coating and M10 rigging points.
- Shock-resistant front grille for optimal protection of the speaker.
- 36 mm dual tilt stand attachment with 0° and 5° tilt angle.
- Extensive and smart accessories for installation and transport.
LD Systems LDS-EB122AG3 Product Specifications:
Product type | PA loudspeaker |
Type | active |
Low/mid driver dimensions | 12 " |
Woofer size | 304.8 mm |
Woofer magnet | Ferrite |
Woofer brand | Custom-made |
Woofer voice coil | 2.5 " |
Woofer voice coil (mm) | 63.5 mm |
Horn | BEM optimized CD Horn |
HF driver dimensions | 1 " |
HF driver size | 25.4 mm |
HF driver magnet | Ferrite |
HF driver brand | BMS |
HF driver voice coil | 1 " |
HF driver voice coil | 25.4 mm |
Amplifier | Class D |
Dispersion (H x V) | 90 x 50 ° |
RMS | 500 W |
Peak power | 1000 W |
Frequency response | 58 - 20000 Hz |
Max. SPL (peak) | 131 dB |
Protection circuits | Multiband limiter, over voltage, over-current, thermal overload |
Input sensitivity | -5 dBu |
Controls | 2 x gain, 2 x Mic/Line, Mode |
Indicators | Limit, Mic, Mode, On, Protect (protection circuit engaged), Signal |
Line inputs | 2 |
Line input connectors | 6.3 mm jack, XLR |
Line outputs | 1 |
Line output connectors | XLR |
Operating voltage | 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) |
Operating Temperature | 0 - 40 °C |
Relative Humidity | < 80% (non-condensing) |
Cabinet material | 15 mm Plywood |
Cabinet surface | Polyurea |
Cabinet construction | Bass Reflex |
Monitor angle | 54 ° |
Width | 390 mm |
Height | 627 mm |
Depth | 377 mm |
Weight | 20.1 kg |
