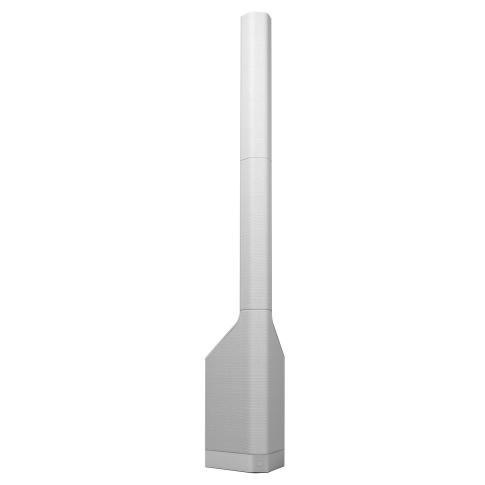

Product type | PA Complete Systems |
Type | active |
Color | Cocoon White |
Max. SPL (continuous) | 121 dB |
Max. SPL (peak) | 131 dB |
Frequency response | 42 - 20.000 Hz |
Dispersion (H x V) | 140 x 15 |
Total Height | 2173 mm |
Weight | 46 kg |
Features | Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application |
Subwoofer |
---|
Woofer dimensions | 2 x 10" |
Woofer size | 2 x 254 mm |
Woofer magnet | Neodymium |
Woofer brand | Custom-made |
Woofer voice coil | 3" |
Woofer voice coil (mm) | 76.2 mm |
Cabinet construction | Bass Reflex |
Housing material | 15 mm Plywood |
Cabinet surface | HD coated aluminum , multi layer mesh (cloth) |
Dimensions Subwoofer (W x H x D) | 400 x 745 x 470 mm |
Subwoofer weight | 30.6 kg |
Mid/Hi System |
---|
Midrange size | 16 x 2.8" |
Midrange size | 16 x 71.1 mm |
Midrange magnet | Neodymium |
Midrange brand | Custom-made |
Midrange voice coil | 0.75" |
Midrange voice coil | 20 mm |
Tweeter dimensions | 32 x 1" |
Tweeter dimensions (mm) | 25.4 mm |
Tweeter magnet | Neodymium |
Tweeter brand | Custom-made |
Tweeter voice coil | 1" |
Tweeter voice coil (mm) | 25.4 mm |
Wave Guide | SonicGuide Technology |
MF / HF Transducer Arrangement | Patented WaveAhead Technology |
Loudspeaker inputs | 1 |
Speaker input connections | Custom-made multipin |
Cabinet construction mid/high | Closed |
Mid/Hi system cabinet material | Aluminum |
Mid/Hi system cabinet surface | HD coated aluminum , multi layer mesh (cloth) |
Mid/Hi system width | 157 mm |
Mid/Hi system height | 1428 (2 x 714) mm |
Mid/Hi system depth | 91 mm |
Mid/Hi system weight | 2 x 7.7 kg |
Amplifier module (integrated in subwoofer) |
---|
Amplifier | 3 x class D |
System output (RMS): | 1400 W |
System output (Peak) | 2800 W |
Protection circuits | DC protection, Multiband limiter, short circuit, thermal protection |
Cooling | Convection |
Controls | Bluetooth HOLD TO LINK button, Bluetooth STEREO LINK button, Main level, Power On/Off, Sub level |
Indicators | Bluetooth , Bluetooth STEREO LINK , Limit , Power , Protect (protection circuit engaged), Signal |
Mains connector | IEC power cable (included) |
Operating voltage | 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (Automatic conversion), Switching power supply |
Power Consumption (On / Off / Max.) | 0 W / 11 W / 1000 W |
Ambient temperature (operating) | 0 - 40 °C |
Relative Humidity | 10 % - 80 % |
Line Inputs | 1 x stereo |
Line Input Connectors | Neutrik XLR |
Line Outputs | 1 x Stereo Thru |
Line Output Connectors | Neutrik XLR |
Number of speaker outputs | 1 |
Loudspeaker Output Connectors | Custom-made multipin |
Bluetooth Standard | A2DP |
Bluetooth Audio Decoder | AAC, aptX, SBC |
DSP characteristics |
---|
Bit depth AD/DA converter | 24 bit |
Sampling frequency | 48 kHz |
Signal-to-noise ratio | 106 dB |
