Be the first to review this product
SKU
DLM12S
$1,149.99
Item Backordered
Expected November 30, 2024

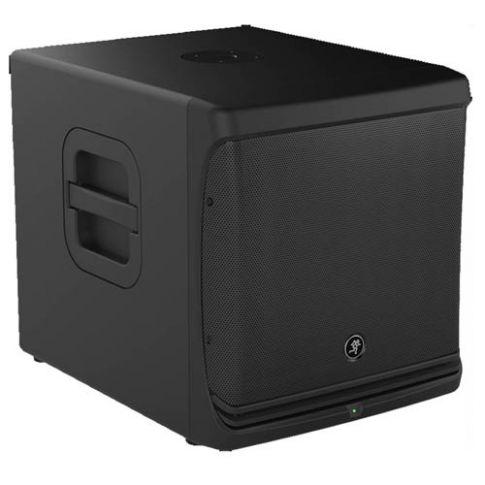

Mackie DLM12S 2000 Watt 12" Powered Subwoofer
Packing huge power and deep low end into the highest-output compact subwoofer on the market, the Mackie DLM12S 12” Powered Subwoofer delivers 2000 watts of chest-pounding power into any system. The DLM12S features an integrated Mackie DLP digital processor, offering intuitive one-touch control over the professional tools you demand for your professional sound system. A precision digital crossover optimizes any loudspeaker, including the perfect presets for your Mackie full-range loudspeakers.
DLM12S Features:
- 2000W power via ultra-efficient Class-D amplification.
- High-power 12″, heat-treated woofer with 3″ voice coil.
- Ultra-low frequency extension hits hard down to 35 Hz.
- DLP Digital Processor.
- Powerful, one-touch digital processor with bright OLED screen.
- Precision digital crossover.
- Presets for use with DLM & SRM Series full-range loudspeakers.
- Variable crossover control for optimization with any loudspeaker.
- Six total XLR connects for flexible I/O control.
- Two line level inputs.
- Two full-range outputs for side fills, etc..
- Two high-pass outputs for direct connection to DLM loudspeakers.
- Unmatched system control for professional applications.
- Alignment delay up to 300ms for delay stack, balcony, etc.
- Three memory locations for instant venue setting recall.
- Smart Protect DSP dynamically protects amp/driver.
- Innovative ultra-compact design.
- Highest-output compact subwoofer on the market.
- Fit an entire DLM system in nearly any car.
- Stack them up for storage.
- Pole mount a DLM8 or DLM12.
- Extremely durable 15mm poplar cabinet.
- Rugged, powder-coated 20 gauge steel grille.
- Ridiculously lightweight (48 lbs. / 21.7 kg).
Mackie DLM12S Specifications
Power Capacity | 1,000W RMS 2,000W peak |
Low Frequency Driver | 12" (305 mm) woofer 2.5" (64 mm) voice coil diameter Paper diaphragm Ferrite magnet |
High Frequency Driver | 1.75" (44 mm) compression driver 1" (25 mm) horn entry diameter Polyimide film diaphragm Ferrite magnet |
Frequency Response | 38 Hz to 20 kHz (-10 dB) |
Maximum Sound Pressure Level (SPL) | 128 dB @1 m, calculated |
Crossover | 1.6 kHz |
Dispersion | 90° conical |
Equalization | Low shelving: ±15 dB @ 80 Hz Mid-peaking: ±15 dB @ 2.5 kHz High shelving: ±15 dB @ 12 kHz Increments: ±3 dB |
Amplifier Power | Low Frequency Amplifier: 500W RMS, 1,000W peak Rated THD: < 1% Cooling: multi-speed fan Class D design High Frequency Amplifier: 500W RMS, 1,000W peak Rated THD: < 1% Cooling: multi-speed fan Class D design |
Audio Inputs | 1 x XLR/TRS combo - Channel 1 (XLR is mic/line switchable) 1 x XLR/TRS combo - Channel 2 (TRS is a Hi-Z input) 2 x RCA phono - Channel 2 (1 x L/R) |
Input Impedances | Channel 1: Mic: 3.3kΩ balanced Line: 20kΩ balanced, 10kΩ unbalanced 1/4" TRS: 16kΩ balanced, 8kΩ unbalanced Channel 2: XLR Line: 20kΩ balanced, 10kΩ unbalanced 1/4" TRS [Hi-Z instrument]: 1MΩ unbalanced RCA: 25kΩ unbalanced |
Audio Output | 1 x XLR - Thru (switchable output, channel 1 or mix) |
Mixer Section | DL2 Digital Mixer System Processing: EQ: 6 speaker modes Alignment delay: 0 to 300 ms FX: 16 presets Multi-band feedback destroyer: On / Off / Clear / Hold Memory: 3 locations for instant venue setting recall and factory reset |
Power Requirements | 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W |
AC Plug Style | 3-pin IEC 250VAC |
Operating Temperature Range | 32 to 104°F (0 to 40°C), extended ambient temperature |
Construction | PC-ABS cabinet High durability black paint finish Top handle Powder-coated 20 gauge steel grille Three M10 x 17 mm fly points 50° monitor angle (using integrated kickstand) |
Mounting Options | Pole mount, wall mount or fly via three integrated M10 x 17 mm mounting points |
Dimensions (H x W x D) | 15.9 x 15.3 x 14.3" (403 x 389 x 363 mm) |
Weight | 31 lb (14.1 kg) |
The DLM12S Box Includes:
(1) Mackie DLM12S 2000 Watt 12" Powered Subwoofer
(1) Power Cord
(1) Owner's Manual
