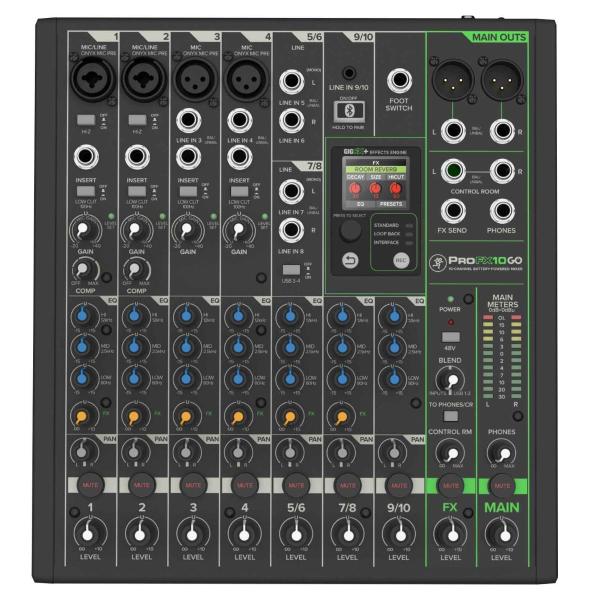

Mackie ProFX10 GO 10-Channel Battery-Powered Analog Mixer with Enhanced FX, USB Recording Modes, and Bluetooth
Questions? Call 1-800-355-7746 or Chat below
Mackie ProFX10 GO is a professional analog mixer and USB-C audio interface that can run on a rechargeable, swappable battery for up to 8 hours, so you're always ready to mix on the GO. ProFX10 GO gives you up to 8 hours of professional mixing and recording on a single charge with the included GB-10 battery. It's the best way to get quality live sound for remote gigs and outdoor events. Connect your phone or tablet to the dedicated Bluetooth channel to stream songs, perform over backing tracks or broadcast your gig or live event online. You can even take calls through ProFX10 GO—Mix Minus makes sure the caller doesn't hear themselves. Enhance your sound using high-resolution GigFX+ effects including reverbs, delays, choruses and more. Edit and save your own presets on the fly via the full-size LCD screen, so you always have polished, professional sound when it's showtime.
Capture your event or performance with three USB-C recording modes: Standard for the full mix with effects, Loopback to include computer audio with mixer signal for streaming, and Interface to record channel 1-2 without effects processing. ProFX10 GO lets you go anywhere and bring the incredibly low-noise, high-headroom performance of four award-winning Onyx preamps. With up to 60 dB gain, 100 Hz low-cut filters and 48V phantom power, these preamps can handle any mic you throw at them. Even under battery power at a remote event or show, ProFX GO gives you the raw analog power of a professional live mixing board, including essentials like three-band EQ to shape your sound and one-knob compression to help keep levels in check. Mix your entire live setup under battery power with all the inputs and outputs you need for mics, instruments, stereo playback devices, smartphones, loudspeakers and more, plus a high-quality headphone output for crystal-clear personal monitoring.
Mackie ProFX10 GO 10-Channel Powered Analog Mixer Features:
- Swappable, Rechargeable GB-10 Battery.
- Includes GB-10 rechargeable battery for up to 8 hours of mixing and recording, miles from a power outlet.
- The battery recharges whenever the mixer is plugged into power, or you can recharge it outside the unit, so it's always good to GO.
- Battery also serves as an excellent backup when you are short on power outlets, or working a shady venue with questionable power.
- When you're out of juice, swap out the battery with a spare (sold separately) for double the battery life.
- All the bells and whistles of a professional Mackie mixer, including Onyx preamps, no longer chained to the wall.
- A new level of premium battery-powered mixing for mobile DJs, remote event producers or venues with limited power.
- Bi-directional Bluetooth.
- Connect your phone or tablet via the dedicated Bluetooth channel.
- Send and receive audio wirelessly.
- Play songs or perform over backing tracks.
- Stream your gig or event live on Twitch, YouTube or Instagram with your phone.
- Mix Minus lets you take phone calls through the mixer without the caller hearing themselves.
- Customizable GigFX+ Effects.
- High-resolution GigFX+ effects engine includes reverbs, delays, choruses and more.
- Full-color LCD display for editing and saving effects presets.
- USB Recording Modes.
- 24-bit / 192 kHz 2x4 USB-C audio interface.
- Three USB recording modes: Standard (include FX), Loopback (include computer audio) and Interface (channels 1-2 dry.)
- Dedicated USB 1-2 playback with blend control for monitoring computer output and a latency-free feed from the mixer.
- Separate USB 3-4 return on channel 7/8, perfect for playing software instruments and overdubbing.
- Waveform OEM recording software included.
- Analog Mixing Essentials.
- 4 Onyx mic preamps with up to 60 dB of gain on channels 1-4.
- Hi-Z switches on channels 1 and 2 for direct connection of instruments.
- 100 Hz low-cut filters.
- 3-band EQ on all channels.
- One-knob compression on channels 1 and 2.
- Versatile Connectivity.
- XLR/TRS combo inputs on channels 1 and 2.
- Separate XLR and TRS inputs on channels 3 and 4.
- TRS channel inserts on channels 1-4.
- Stereo 1/4" TRS line inputs on channels 5/6 and 7/8.
- Stereo 1/8" line input on channel 9/10.
- 1/4" footswitch input.
- 1/4" TRS control room outputs for powered speakers.
- 1/4" headphone output with independent level control.
- Stereo XLR and 1/4" TRS main outputs.
- 1/4" TRS output for aux send.
- Legendary Built-Like-A-Tank construction.
- Solid steel chassis.
- Tough ABS side protection.
- 5.9 lb / 2.7 kg with battery (light enough to carry.)
- 2.75 x 10.6 x 11.5 in / 70 x 270 x 292 mm (fits in a backpack.)
Mackie ProFX10 GO Product Specifications:
Noise Characteristics
Equivalent Input Noise (EIN) (150Ω Source Impedance, 20 Hz to 20 kHz)
Mic in to Isert Send out, Max Gain: -126 dBu
Residual Output Noise
All Outputs, master levels off, all channel levels off: -95 dBu
All Outputs, master levels unity, one channel level unity: -80 dBu
Frequency Response
Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 30 kHz
Distortion (THD+N)
(22 Hz to 80 kHz Bandwicth)
Mic in to Main Out (+4 dBu output): <0.02%
Attenuation and Crosstalk
Adjacent Inputs @ 1 kHz: -90 dB
Inputs to Outputs @ 1 kHz: -80 dB
Fader Off @ 1 kHz: -75 dB
Mute Switch @ 1 kHz: -90 dB
Common Mode Rejection Ratio (CMRR)
Mic in to Main out, max gain, 1 kHz: 70 dB
Maximum Levels
All Inputs: +22 dBu
Main Mix XLR: +28 dBu
All other outputs: +22 dBu
Impedances
Mic in: 3.3 kΩ
Channel Insert Return: 10 kΩ
All other inputs: ≥ 20kΩ
Phones out: 25 Ω
All other outputs: 120 Ω Unbalanced, 240 Ω Balanced
Equalization
Low: +15 dB @ 80 Hz
Mid: +15 dB @ 2.5 kHz
High: +15 dB @ 12 kHz
Low Cut Filter: 18 dB/octave @ 100 Hz
Maximum Voltage Gain (EQ Flat)
Mic Input Channel to-
Insert Output: 60 dB
1.4" Main Output: 80 dB
XLR Main Output: 86 dB
Mono Line Input Channel to-
Insert Output: 40 dB
1.4" Main Output: 60 dB
XLR Main Output: 66 dB
Stereo Line Input Channel to-
1.4" Main Output: 20 dB
XLR Main Output: 26 dB
1/8" Input to-
1.4" Main Output: 40 dB
XLR Main Output: 46 dB
USB Input to-
XLR Main Output: 46 dB
Digital Effects
Number of Presets: 12
Meters
Main L/r Mix - Two columns of 12 segments each: OL, +15, +10, +6, +3, 0 (0 dBu), -2, -2, -7, -10, -20, -30
USB
Format: USB 2.0
I/O: 1 Stereo Input, 2 Stereo Outputs
A/D/A: 24-bit, 44.1 kHz, 48kHz, 96 kHz, 192 kHz
Phantom Power
48 VDC to all Mic channels simultaneously
Power Requirements
Power Connector: 12v === 2A Class | Hard-Wired Wall Mount Adapter [Output}; 100VAC, 50-60 hZ, 0.8A [Input]
Battery Type: Lithium Ion
Battery Technology: 11.1V, 5200mAH 57.72Wh, 24V
Battery Life: Up to 8 hours
Operating Temperature: 0-40 °C // 32-104 °F
Dimensions
Size (H x W x D): 3.8 X 10.6 x 11.5 in (97 x 269 x 292 mm)
Weight 5.9 lb (2.7 kg)
Each ProFX10 GO Retail Box Includes:
(1) Mackie ProFX10 GO 10-Channel Battery-Powered Analog Mixer with Enhanced FX, USB Recording Modes, and Bluetooth
