Be the first to review this product

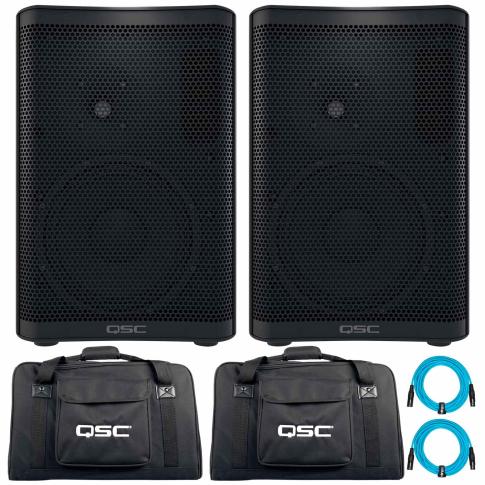

QSC CP8 CP Series 1000 Watt Compact 8" Powered Loudspeakers (2-Pack) with CP8 Tote Padded Tote Bags Package
Expected February 28, 2025
QSC CP8 CP Series 1000 Watt Compact 8" Powered Loudspeaker Features:
- Compact and powerful performance.
- 1000 Watt peak power Class-D amplifier module.
- Easily selected contours for commonly-used applications.
- Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection.
- Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area.
- Light weight and highly portable.
- Professional appearance looks great in any application.
- Use for main PA, stage monitor, or instrument amplifier.
- 35 mm pole socket.
- Optional yoke, tote, and outdoor cover accessories.
- Complete EASE and CAD information available online.
- 3-Year Warranty.
QSC CP8 Specifications:
Configuration: Two-way active loudspeaker LF Transducer: 8 in (203 mm), cone HF Transducer: 1.4 in (35.6 mm) compression driver Frequency Response (-6 dB): 56 - 20 kHz Frequency Range (-10 dB): 53 - 20 kHz Nominal Coverage Angle: 90° Axisymetric Maximum Rated SPL: 124 dB Amplifier: Class D
Peak: 800 W (LF), 200 W (HF)Controls: Power
2 x Gain
Mic Boost Push Switch
6-way Contour Selection SwitchIndicators: Power LED
2 x Input Signal LED
Input B MIC selected LED
Limiter active LEDConnectors: 2 x locking XLR/F ¼" combo (Line Input and Mic/Line input)
1 x 3.5 mm TRS (Stereo Input)
1 x XLR/M (Mix Output)
1 x IEC power connectorAC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz AC Power Consumption 1/8th Power: 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A Enclosure Material: Polypropylene Attachment Points: M10 threaded insert Color: Black (RAL 9011) Grille: 18 Gauge powered coated steel Dimensions (HxWxD): 16.2 x 10.7 x 10.1 in
411 x 273 x 256 mmNet Weight: 21.0 lbs (9.5 kg) Shipping Weight: 25.5 lbs (11.4 kg) Regulatory: EMC, UL, CB Optional Accessories: CP8 Tote, CP8 Outdoor Cover, CP8 Yoke
Venom Solutions SF20XLR-BLUE Cable Specifications:
Connectors: Neutrik XLR3F to XLR3M
Conductors: 20 AWG x 2 OFC
Shield: 95% OFC Braid
(2) QSC CP8 CP Series 1000 Watt Compact 8" Powered Loudspeakers
(2) QSC CP8 Tote Padded Tote Bags for the CP8 Compact 8" Powered Loudspeakers
(2) Venom Solutions 20' Blue Sure-Fit XLR to XLR Connecting Cables [SF20XLR-BLUE]
(2) Hook & Loop Cable Straps
