QSC CP8 CP Series 1000 Watt Compact 8" Powered Loudspeaker Features:
- Compact and powerful performance.
- 1000 Watt peak power Class-D amplifier module.
- Easily selected contours for commonly-used applications.
- Advanced DSP with Intrinsic Correction for superior sound quality and speaker protection.
- Directivity Matched Transition (DMT) for consistent frequency response across the entire coverage area.
- Light weight and highly portable.
- Professional appearance looks great in any application.
- Use for main PA, stage monitor, or instrument amplifier.
- 35 mm pole socket.
- Optional yoke, tote, and outdoor cover accessories.
- Complete EASE and CAD information available online.
- 3-Year Warranty.
QSC CP8 Specifications:
Configuration: Two-way active loudspeaker LF Transducer: 8 in (203 mm), cone HF Transducer: 1.4 in (35.6 mm) compression driver Frequency Response (-6 dB): 56 - 20 kHz Frequency Range (-10 dB): 53 - 20 kHz Nominal Coverage Angle: 90° Axisymetric Maximum Rated SPL: 124 dB Amplifier: Class D
Peak: 800 W (LF), 200 W (HF)Controls: Power
2 x Gain
Mic Boost Push Switch
6-way Contour Selection SwitchIndicators: Power LED
2 x Input Signal LED
Input B MIC selected LED
Limiter active LEDConnectors: 2 x locking XLR/F ¼" combo (Line Input and Mic/Line input)
1 x 3.5 mm TRS (Stereo Input)
1 x XLR/M (Mix Output)
1 x IEC power connectorAC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz AC Power Consumption 1/8th Power: 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A Enclosure Material: Polypropylene Attachment Points: M10 threaded insert Color: Black (RAL 9011) Grille: 18 Gauge powered coated steel Dimensions (HxWxD): 16.2 x 10.7 x 10.1 in
411 x 273 x 256 mmNet Weight: 21.0 lbs (9.5 kg) Shipping Weight: 25.5 lbs (11.4 kg) Regulatory: EMC, UL, CB Optional Accessories: CP8 Tote, CP8 Outdoor Cover, CP8 Yoke

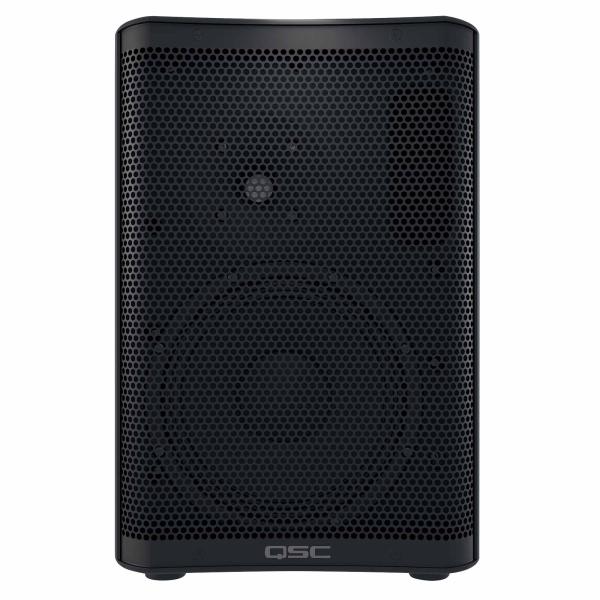

(1) QSC CP8 CP Series 1000 Watt Compact 8" Powered Loudspeaker
