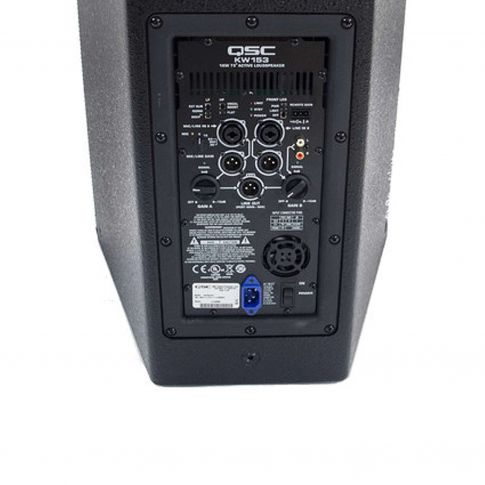

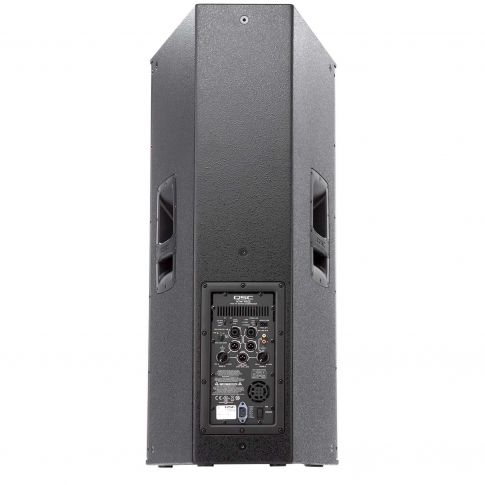

KW Series features a four-position mic / line gain switch that allows for connection of a wide variety of devices. Combo XLR and 1/4" TRS inputs accept both mic and line level input while a set of RCA phono inputs (except KW181) allow additional connectivity to portable MP3 players, CD players and line-level mixers. Up to three audio sources can be mixed internally and summed to a balanced output for "daisy-chaining" of multiple units. Separate direct outputs are also provided on each channel for additional output flexibility. On-board switches provide preset EQ settings. The HF setting (full-range models) can be set to VOCAL BOOST for additional presence in the critical mid-frequency area or FLAT for accurate reproduction of the incoming signal. The LF switch can be set to NORM, DEEP for additional bass extension, or EXT SUB (full-range models) for use with an external subwoofer. The rear panel LED switch can be set to POWER, illuminating the front-mounted LED when the unit is powered on, OFF for applications where it is not desirable to illuminate the front LED, or LIMIT which indicates to the system operator that the clip limiter circuit has been engaged during operation. The KW122 and KW152 feature a unique Tilt-Direct pole cup mounting system. A simple turn of the dial engages a 7.5 degree downward tilt of the speaker allowing acoustic energy to be kept on the audience and off reflective surfaces for applications where maximum coverage from a high-positioned speaker is desired. Remote gain control capability is offered via a potentiometer (not included) connected to the on-board Phoenix-Style connector. In an installed application, multiple KW Series speakers can be "daisy-chained" for total gain control from a single remote pot. Auto-standby mode is engaged after 5 minutes of inactivity. KW Series is designed to withstand the rigors of professional use. Advanced construction processes, premium-grade Baltic birch cabinetry, ergonomic, cast aluminum handles, low-noise casters (KW181) and a highly protective steel grille provide for ease of transport and long term durability. Integrated M10 suspension points allow for flown applications with a KW M10 KIT (sold separately) and a threaded pole receptacle (KW181) provides for a positive, wobble free connection to a threaded speaker pole (included).
KW153 Series Features

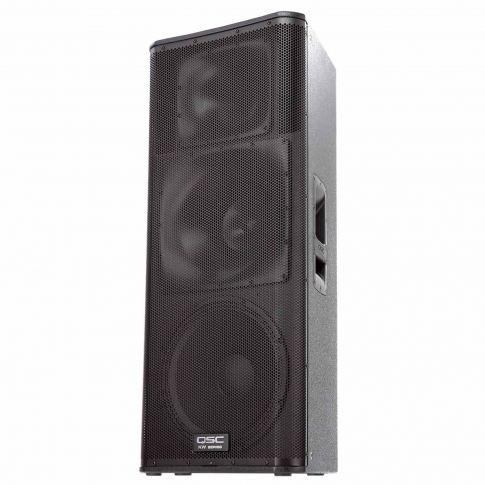

- 15" woofer; 6.5" midrange woofer; 1.75" diaphragm compression driver.
- 75° conical DMT coverage.
- Maximum SPL 134 dB peak.
- 1000-watt Class D power modules in all models (2 x 500 W continuous).
- Onboard mixer with two combo XLR and ¼ inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output.
- Extensive DSP featuring DEEP and Intrinsic Correction enhances system performance.
- DMT (Directivity Matched Transition) ensures uniform coverage across the entire sound field.
- Rugged, texture-painted birch enclosures.
- Four-position Mic/Line gain.
- Tour-grade 16 gauge steel grilles.

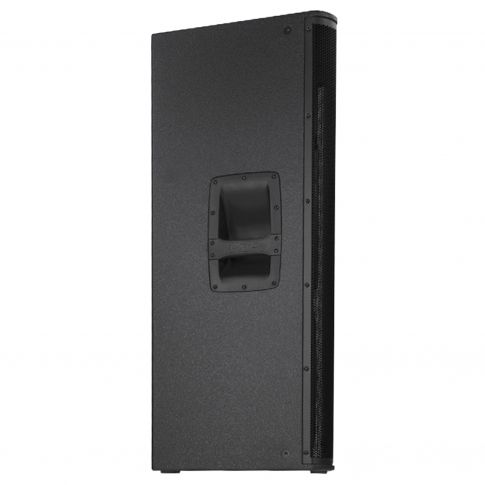

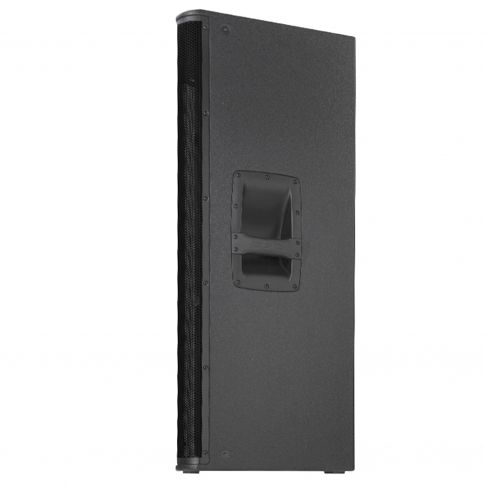

- Comfortable ergonomic handles.
- 35 mm standard (non-tilt) pole socket.

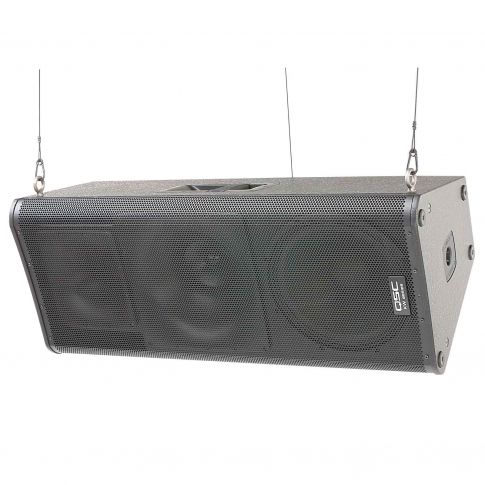

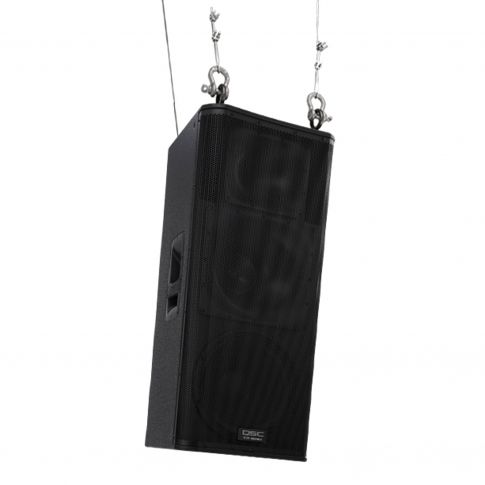

- M10 rigging points for suspended installation.
- Intrinsic Correction, first featured in our high-end line array products maps 65-75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target. The result is a speaker that behaves equally well across the entire sound field.
- DEEP and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies.
- GuardRail protection, first introduced on our GX Series amplifiers protects both the amplifier module and your performance from unnatural and destructive clipping.

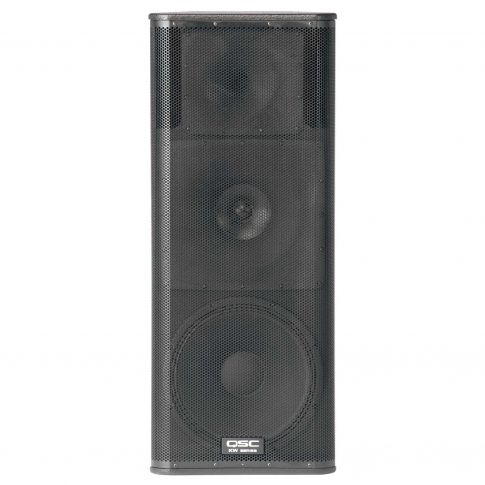

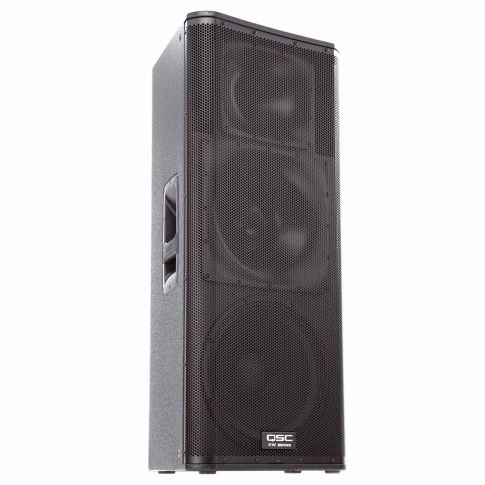

QSC KW153 Specifications
Configuration 15" 3-way trapezoidal Powered Yes Power Configuration Bi-amped LF Driver Size 15" LF Driver Power Amp 500W Class D HF Driver Size 6.5" (Mid), 1.75" (H) HF Driver Power Amp 500W Class D (Shared Between Mid and HF) Frequency Range 35Hz-20kHz (-10dB) Crossover Frequency 500Hz, 2.1kHz Maximum Peak SPL 134dB Horizontal Coverage Angle 75 Degrees Axisymmetric Vertical Coverage Angle 75 Degrees Axisymmetric Enclosure Material 15mm Birch Plywood Mounting Options Pole, Fly Inputs 1 x Combo (XLR/TRS, Mic/Line), 1 x Combo (XLR/TRS, Line), 2 x RCA Outputs 2 x XLR (Direct), 1 x XLR (Line) Height 43.1" Width 18.5" Depth 16.8" Weight 87 lbs.

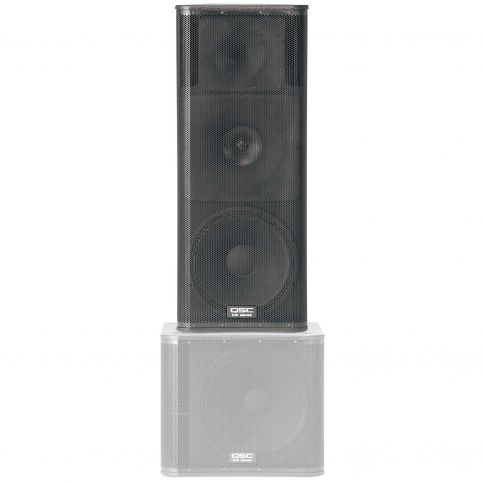

(2) QSC KW153 1000 Watt 3-Way Active Speakers with 15" Woofers & 6.5" Midrange Woofer
(2) Locking NEMA 5-15 power cables
(2) Locking CEE 7/4 power cables
(2) Wiring hookup diagrams
