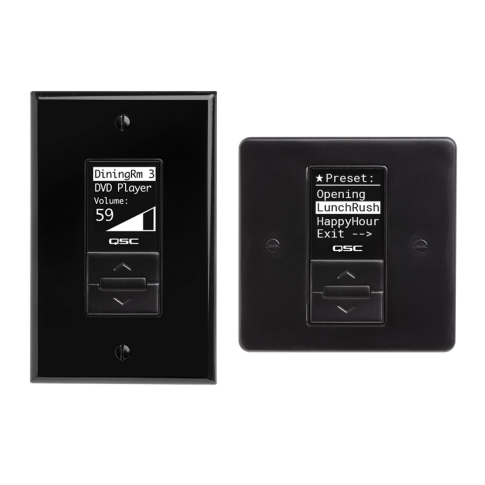

QSC MP-MFC-BK Wall Mount Controller for MP-M Zone Mixers - Black
SKU
MP-MFC-BK
$335.00
Item Backordered
Expected March 31, 2025
Only at IDJNOW
The MP-MFC controllers are intuitive wall mount controls to enable customizable system adjustments for the MP-M Series music and paging mixer. Designers can configure these control peripherals to provide end users with as much or as little control over the system as needed.
QSC MP-MFC-BK Wall Mount Controller for MP-M Features:
- For use with the MP-M paging and music mixer/processor only.
- Control zone source selection, zone output level, input level selection and scene recall.
- Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select.)
- Ability to daisy chain up to four MP-MFC controllers.
- Up to 250 m cable length (CAT5.)
- Up to eight MP-MFC controllers per MP-M Series mixer.
- Available in black or white.
- Available in NA and EU sizes.
QSC MP-MFC-BK Specifications:
| Controls | Three buttons (increment, decrement, and select) |
| Connectors | 2× RJ45 |
| Display | 128 × 128 pixels, 27 (L) × 26 (W) mm viewing area |
| Available Colors | Black, white |
| Connection Max | Per MFC port: Daisy chain up to 4 MP-MPC controllers, with a 250 m maximum cable length Total: Up to 8 controllers per MP-M Series mixer |
| Versions | MP-MFC-NA-BK – North American version, black MP-MFC-NA-WH – North American version, white MP-MFC-EU-BK – European version, black MP-MFC-EU-WH – European version, white |
| Dimensions (H×W×D) North American versions |
114 × 7 × 35 mm 4.5 × 2.75 × 1.4 in |
| Dimensions (H×W×D) European versions |
89 × 89 × 36 mm 3.5 × 3.5 × 1.4 in |
| Net Weight | All Versions: 0.1 kg / 0.2 lb |
Each MP-MFC-BK Retail Box Includes:
(1) QSC MP-MFC-BK Wall Mount Controller for MP-M Zone Mixers - Black
