Be the first to review this product
Expected November 30, 2024
Roland DJ-505 DJ Controller Features:
- Two channels and Deck Select for up to four decks.
- Large, low-latency platters optimized for scratching.
- Eight dedicated pad controls for Serato DJ with Hot Cue, Roll, Slicer, TR, Pattern, and Sampler modes.
- Built-in, fully editable drum kits from Roland's legendary TR-808, TR-909, TR-606*, and TR-707*, realized with advanced ACB (Analog Circuit Behavior) technology.
- TR kits contain eight sounds-Bass Drum, Snare Drum, Closed Hat, Open Hat, Tom, Rim, Clap, and Ride-that can be played on the performance pads and triggered from the sequencer.
- Shape TR drum sounds and Serato samples in real time with Level, Attack, Decay, and Tune knobs.
- Classic 16-step sequencer that can trigger either TR drum sounds or the Serato Sampler; new features include nudge (TR-S), step-roll, and instrument/sample mute.
- Unlocks Serato DJ and comes with a Serato Tool Kit license (includes Serato Pitch 'n Time DJ, Serato Flip, and all Serato DJ FX packs).
- Mixer can be used standalone via connection of multi-players or turntables to the line and phono inputs; Serato DVS Upgrade Ready.
- Balanced XLR outputs let you connect to a professional PA system; Booth Out plus separate 1/4-inch and 1/8-inch Phones outputs allow you to monitor your mixes.
- Mic input with gate, hi-pass, reverb, and echo FX.
- MIDI output to sync external devices with Serato DJ and the TR-S sequencer.
Roland DJ-505 DJ Controller Specifications:
Signal processing
Sampling Frequency: 48 kHz
Nominal input level
INPUT (1–4) (RCA phono type, LINE): -12 dBu
INPUT (1, 2) (RCA phono type, PHONO): -39 dBu
MIC IN (1/4-inch phone type): -60 dBu
Nominal output level
MASTER OUT 1: +6 dBu (balanced)
MASTER OUT 2: +0 dBu
BOOTH OUT: +6 dBu (balanced)
Input impedance
INPUT (1–4) (RCA phono type): 47 k ohms or greater
MIC IN (Combo type): 7 k ohms or greater
Output impedance
MASTER OUT 1: 600 ohms (balanced)
MASTER OUT 2: 1 k ohm (unbalanced)
BOOTH OUT: 600 ohms (balanced)
PHONES: 44 ohms
Frequency response
48.0 kHz: 20 Hz–22 kHz (+0/-2 dB)
Connectors
INPUT (1–2) jacks: RCA phono type
MIC IN jack: 1/4-inch phone type
MASTER OUT 1 connectors: XLR type (balanced)
MASTER OUT 2 jacks: RCA phono type
BOOTH OUT jacks: TRS phone type (balanced)
PHONES jacks: stereo 1/4 inch phone type, miniature phone type
PC port: USB type B
MIDI OUT connector
DC IN jack
PHONO GROUND terminal
Power supply
AC adaptor
Current draw
2,000 mA
Included Accessories
Startup Guide
Leaflet "USING THE UNIT SAFTY"
AC Adaptor
Power code
USB cable
Serato TOOL KIT VOUCHER
Size and Weight
Width: 530 mm / 20-7/8 inches
Depth: 402 mm / 15-7/8 inches
Height: 73 mm / 2-7/8 inches
Weight: 3.5 kg / 7 lbs 12 oz

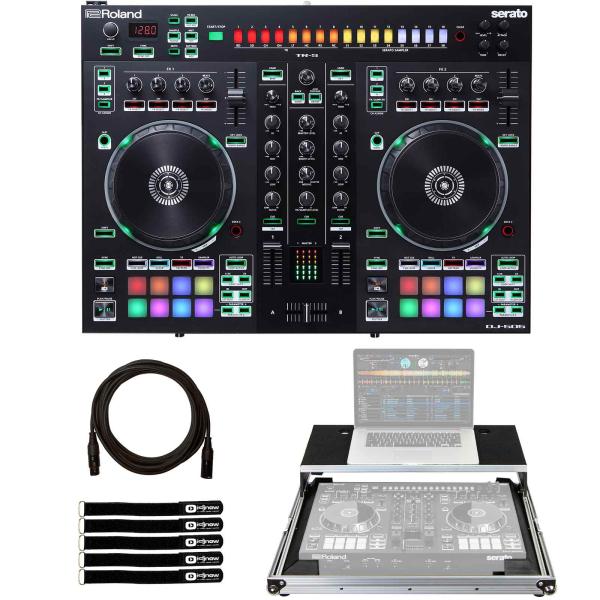

This Package Includes:
(1) Roland DJ-505 DJ Controller for Serato DJ
(1) Odyssey FRGSDJ505 Flight Ready Glide Style Series Roland DJ-505 Serato DJ Controller Case
(2) Sure-Fit XLR Connecting Cables
(5) 8" Reusable Hook and Loop Cable Ties
The Roland DJ-505 Retail Box Includes:
(1) Roland DJ-505 DJ Controller
(1) Startup Guide
(1) Leaflet "USING THE UNIT SAFTY"
(1) AC Adaptor
(1) Power code
(1) USB cable
(1) Serato TOOL KIT VOUCHER
