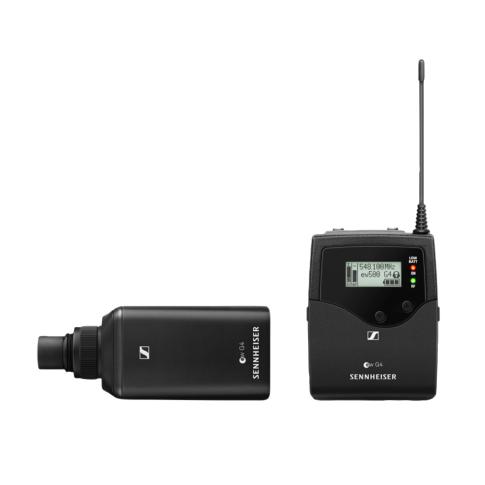

Sennheiser ew 500 BOOM G4-GW1 Portable Plug-on Wireless Set - Frequency Range: GW1
SKU #: EW-500-BOOM-G4-GW1
$999.00
Reg.
As low as $100/mo or 0% APR with
Limited Supply - Contact Us
Questions? Call 1-800-355-7746 or Chat below
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews>
30-Day Returns
Don't Like it? Return it.
Rugged, all-in-one wireless system for professional interviews and recording. Set consisting of 1 SKP 500 G4 plug on with phantom power, 1 EK 500 G4 portable camera receiver and accessories.
The professional's choice for broadcast quality sound. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers ultimate sound quality, simple mounting and ease of use. The phantom power-equipped SKP 500 plug-on transmitter adapts any wired shotgun or handheld microphone for a wide range of wireless applications, from field interviews to off-camera boom work.
Sennheiser ew 500 BOOM G4-GW1 Plug-on Wireless Set Features:
- Highly versatile solution for professional film sound.
- Rugged all-in-one wireless system for professional interviews and recording.
- Professional sound and excellent construction quality.
- Easy to use and fast setup time.
- Easy and flexible wireless synchronisation between transmitter and receiver via infrared.
- Up to 88 MHz bandwidth, up to 32 channels.
- Range: up to 100 meters / 330 feet.
- Increased RF output power (10/30/50 mW.)
- Up to 8 hours of operation time.
- With 48 V phantom powering.
Sennheiser EK 500 G4 Product Specifications:
| RF characteristics | |
|---|---|
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz AS: 520 - 558 MHz Gw1: 558 - 608 MHz Gw: 558 - 626 MHz GBw: 606 - 678 MHz Bw: 526 - 698 MHz Cw: 718 - 790 MHz Dw: 790 - 865 MHz JB: 806 - 810 MHz K+: 925 - 937.5 MHz |
| Receiving frequencies | Max. 3520 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 88 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Receiver principle | Adaptive diversity |
| Sensitivity (with HDX, peak deviation) | < 1.6 μV for 52 dBA eff S/N |
| Adjacent channel selection | Typically ≥ 65 dB |
| Intermodulation attenuation | Typically ≥ 65 dB |
| Blocking | ≥ 70 dB |
| Squelch | low: 5 dBµV middle: 15 dBµV high: 25 dBμV |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| Signal-to-noise ratio (1 mV, peak deviation) | Line: ≥ 110 dBA Phones: approx. 90 dBA |
| Total harmonic distortion (THD) | ≤ 0.9 % |
| AF output voltage (at peak deviation, 1 kHz AF) | 3.5 mm jack socket: +17 dBu (mono, balanced) |
| Adjustment range of audio output level | 42 dB, adjustable in steps of 6 dB |
| Overall device | |
| Temperature range | -10 °C to +55 °C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 140 mA with receiver switched off: ≤ 25 µA |
| Operating time | Typically 8 h |
| Dimensions | Approx. 82 x 64 x 24 mm |
| Weight (incl. batteries) | approx. 130 g |
Sennheiser SKP 500 G4 Product Specifications:
| RF characteristics | |
|---|---|
| Modulation | Wideband FM |
| Frequency ranges | Aw+: 470 - 558 MHz AS: 520 - 558 MHz Gw1: 558 - 608 MHz Gw: 558 - 626 MHz GBw: 606 - 678 MHz Bw: 526 - 698 MHz Cw: 718 - 790 MHz Dw: 790 - 865 MHz JB: 806 - 810 MHz K+: 925 - 937.5 MHz |
| Transmission frequencies | Max. 3520 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels |
| Switching bandwidth | up to 88 MHz |
| Nominal/peak deviation | ±24 kHz / ±48 kHz |
| Frequency stability | ≤ ±15 ppm |
| RF output power at 50 Ω | switchable: Low: typ. 10 mW Standard: typ. 30 mW High: typ. 50 mW |
| Pilot tone squelch | Can be switched off |
| AF characteristics | |
| Compander system | Sennheiser HDX |
| AF frequency response | 80 - 18,000 Hz |
| Signal-to-noise ratio (1 mV, peak deviation) | ≥ 120 dBA |
| Total harmonic distortion (THD) | ≤ 0.9 % |
| Max. input voltage | 6 V eff |
| Input impedance | 68 kΩ, unbalanced |
| Input capacitance | Switchable |
| Setting range for input sensitivity | 48 dB, adjustable in 6 dB steps |
| Overall device | |
| Temperature range | -10 °C to +55 °C |
| Power supply | 2 AA batteries, 1.5 V or BA 2015 accupack |
| Nominal voltage | 3 V battery / 2.4 V rechargeable battery |
| Current consumption | at nominal voltage: typ. 210 mA with transmitter switched off: ≤ 25 µA |
| Operating time | Typically 8 h |
| Dimensions | Approx. 105 x 43 x 43 mm |
| Weight (incl. batteries) | approx. 195 g |
Each ew 500 BOOM G4-GW1 Retail Box Includes:
(1) Sennheiser EK 500 G4 Camera Receiver(1) Sennheiser SKP 500 G4 Pro Plug-On Transmitter
(4) AA Batteries
(1) CL 1 3.5 Mm Jack Cable
(1) CL 500 XLR To 3.5 Mm Jack Adapter Cable
(1) CA 2 Camera Adapter
(1) Quick Guide
(1) Safety Guide
(1) Manufacturer Declaration Sheet
