Sennheiser EW-DX-TS-3-PIN-Q1-9 Wireless Tablestand Transmitter with 3-Pin XLR | Q1-9 Frequency Range
Expected October 31, 2024

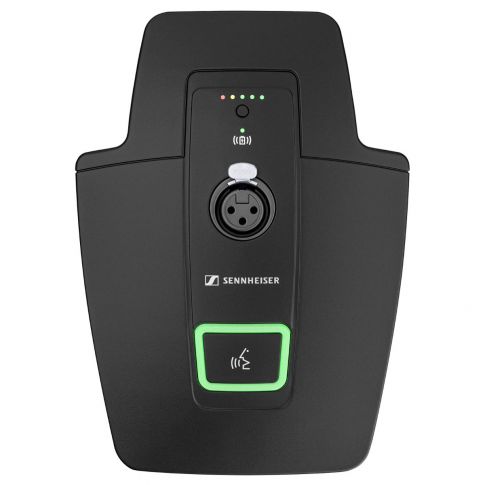

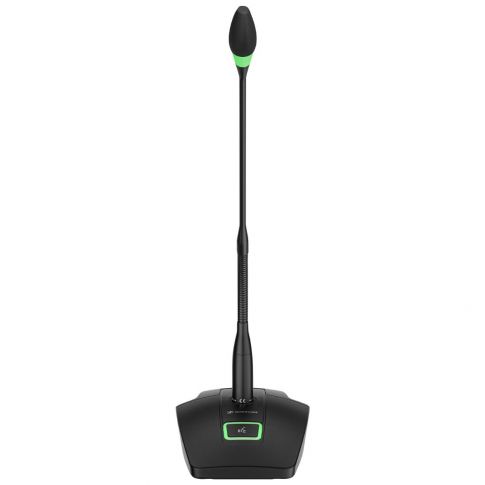

EW-DX TS tablestand transmitter is a sturdy, wireless table stand that provides a stable base for a wide range of Sennheiser gooseneck microphones. EW-DX TS is available in two variants - 3-pin or 5-pin XLR connector.
Focus less on the wireless and more on the audio. Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies and decades of research to deliver a digital UHF system that can be scaled with ease. Multiple hardware and software options create networkable solutions for nearly any stage or campus, while equidistant channel spacing, auto scan, and Bluetooth Low Energy sync automatically coordinate and set frequencies with the push of a button. Monitor your devices from a distance-even from your pocket-with tools like Sennheiser's Control Cockpit, Wireless Systems Manager, and Smart Assist app. The future of wireless is here. EW-DX takes the complexities out of wireless audio by employing sophisticated tools that streamline the setup and monitoring process. With the press of a button, Auto Scan automatically assigns channels using an equidistant tuning grid that allow you to pack more channels more reliably, without problematic intermodulation interference. Take control of the system from your mobile device via the Sennheiser Smart Assist app or utilize advanced software options like Wireless Systems Manager (WSM) and Sennheiser Control Cockpit for a detailed system view in complex, networked environments.
Sennheiser EW-DX-TS-3-PIN 3-Pin Tablestand Transmitter Features:
- Programmable mute switch.
- Inductive charging with CHG 2W.
- 11 h runtime with BA 40 lithium-ion battery.
- Wide range of compatible Sennheiser gooseneck microphones.
- Metal housing.
- Compatible with CHG 2W Wireless Power Transmitter.
Sennheiser EW-DX-TS-3-PIN Product Specifications:
System
Audio link frequency ranges:
Q1-9 470.2 - 550 MHz
R1-9 520 - 607.8 MHz
S1-10 606.2 - 693.8 MHz
S2-10 614.2 - 693.8 MHz
S4-10 630 - 693.8 MHz
U1/5 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
V3-4 925.2 - 937.3 MHz
V5-7 941.7 - 951.8 MHz & 953.05 - 956.05 MHz & 956.65 - 959.65 MHz
X1-6 1350.2 - 1398.8 MHz
X9-18 1435.2 - 1524.8 MHz
Y1-3 1785.2 - 1799.8 MHz
Bluetooth Low Energy (BLE) frequency range: 2402 - 2480 MHz
Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio THD: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Dynamic range: 134 dB
System latency: 1.9 ms
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Relative humidity: 5 - 95 % (non-condensing)
Each EW-DX-TS-3-PIN Retail Box Includes:
(1) Sennheiser EW-DX-TS-3-PIN-Q1-9 Wireless Tablestand Transmitter with 3-Pin XLR | Q1-9 Frequency Range
