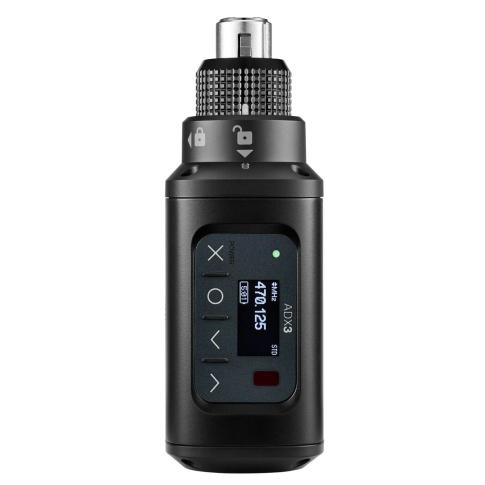

Shure ADX3=-G57 Axient Digital Plug-On Transmitter with ShowLink (Frequency Band: G57)
Expected May 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews
30-Day Returns
Don't Like it? Return it.
Leave the boom mic, plant mic, and interview mic exactly where they are and make necessary transmitter adjustments from the convenience of your cart, bag, camera, or truck. Axient Digital ADX3 plug-on transmitter with ShowLink provides comprehensive, real-time control of all transmitter parameters from the mix position. ADX3 plug-on transmitter features a secure XLR connector design, support for both Shure SB900-series rechargeable and AA batteries, and simple, user-friendly controls and menus.
Incorporating the most innovative wireless audio technology in the world, Axient Digital was engineered from the ground up for professional productions that demand flawless execution. With an unprecedented level of signal stability and audio clarity, plus flexible hardware options, advanced connectivity, and comprehensive control, it's a wireless system built to take on the challenges of today - and tomorrow.
Shure ADX3=-G57 Axient Digital Plug-On Transmitter Features:
- Plug-on. Stay put.
- Axient Digital ADX Series wireless plug-on transmitter.
- ShowLink enabled for comprehensive, real-time control of all Axient Digital transmitter parameters from the mix position.
- Patented locking mechanism for secure, wobble-free connection.
- OLED display with easy-to-navigate menu and controls.
- Rugged metal construction that is resistant to dust and moisture.
- Automatic input staging optimizes gain setting.
- AES 256-bit encryption-enabled for secure transmission.
- 300 feet (100 meter) line-of-sight operating range.
- Selectable modulation modes optimize performance for spectral efficiency.
- Standard - Optimal coverage, low latency.
- High density - Dramatic increase in max system channel count.
- Switchable power levels (2/10/35 mW, region dependent.)
- Shure SB900 rechargeable battery (included) or AA battery (sold separately) options.
- Shure SB900 lithium-ion rechargeable battery option provides up to 8 hours of continuous use, precision metering, and zero memory effect.
- External power and charging option over USB-C port.
- Included: 2 x SB900B batteries, USB-A to USB-C cable, belt clip/pouch, and zippered bag for storage.
Shure ADX3=-G57 Product Specifications:
RF
RF Carrier Frequency Range: 470-960 MHz
Varies by Region. See Frequency Range and Output Power Table on component pages.
Working Range: 100 m (330 ft)
Note: Actual range depends on RF signal absorption, reflection and interference.
RF Tuning Step Size: 25 kHz
Varies by region.
Image Rejection: >70 dB
typical
RF Sensitivity: −98 dBm at 10−5 BER
AUDIO
Latency: Standard mode: 2.08 ms
High Density mode: 2.96 ms
Audio Frequency Response: 20 Hz-20 kHz (±1 dB)
Note: dependent on microphone type
Audio Dynamic Range (A-weighted, typical, System Gain @ +10): XLR Analog Output: 120 dB (A-weighted); 117 dB (unweighted)
AES3 Dante Digital Output: 130 dB (A-weighted); 126 dB (unweighted)
Total Harmonic Distortion (-6 dBFS input, 1 kHz, System Gain @ +10): <0.01% System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output and the tip of the 6.35 mm (1/4-inch) output.
TEMPERATURE RANGE
Battery characteristics may limit this range.
Operating Temperature Range: 0 to 122 °F (−18 °C to 50 °C)
Storage Temperature Range: −20 to 149 °F (−29 °C to 65 °C)
NOTE: This Radio equipment is intended for use in musical professional entertainment and similar applications.
This Radio apparatus may be capable of operating on some frequencies not authorized in your region.
Please contact your national authority to obtain information on authorized frequencies and RF power levels for wireless microphone products.
Each ADX3=-G57 Retail Box Includes:
(1) Shure ADX3=-G57 Axient Digital Plug-On Transmitter with ShowLink (Frequency Band: G57)
(2) SB900B Batteries
(1) USB-A to USB-C Cable
(1) Belt Clip/Pouch
(1) Zippered Storage Bag
