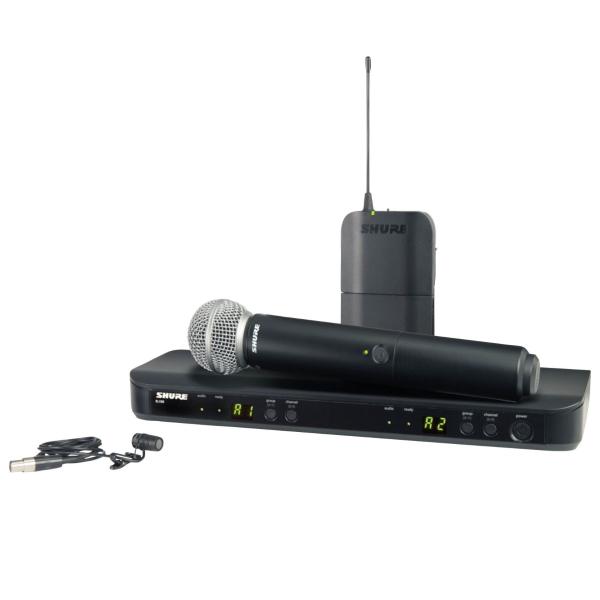

Shure BLX1288/W85-J11 Wireless Combo System with SM58 Handheld and WL185 Lavalier Microphones (J11 Frequency Band)
SKU
BLX1288/W85-J11
$699.00
Item Backordered
Expected February 28, 2025
Only at IDJNOW
The WL185 premium cardioid lavalier microphone brings a new level of sophistication to personal voice reproduction. Like all Microflex family microphones, this lavalier uses an interchangeable condenser cartridge, meaning there will always be a lavalier to suit your application. The SM58 is the industry standard microphone tailored to deliver warm and clear vocal reproduction with analog transmission. With analogue wireless dual transmission.
Featuring an integrated SM58 microphone cartridge, the BLX2/SM58 Handheld Wireless Microphone Transmitter delivers wireless audio with professional clarity and reliability.
Featuring an integrated SM58 microphone cartridge, the BLX2/SM58 Handheld Wireless Microphone Transmitter delivers wireless audio with professional clarity and reliability.
Shure BLX1288/W85 Wireless Combo System Features:
- Integrated microphone capsule design.
- Lightweight, rugged construction.
- -10 dB gain attenuation.
- WL185 Lavalier features a wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum.
- Interchangeable cartridges that provide an optimal choice for each application.
- Rotatable tie-clip that pivots in 90 degree increments for placement flexibility.
- Supplied snap-fit foam windscreen that controls breath noise and stays on securely
- Supplied dual tie clip holds two microphones for dual miking applications.
Shure BLX1288/W85 Product Specifications:
System
Working Range: 91 m (300 ft) Line of Sight (Actual range depends on RF signal absorption, reflection and interference.)
Audio Frequency Response: 50 to 15,000 Hz (Dependent on microphone type)
Total Harmonic Distortion (Ref. ±33 kHz deviation with 1 kHz tone): 0.5%, typical
Dynamic Range: 100 dB, A-weighted, typical
Operating Temperature: -18°C (0°F) to 57°C (135°F) (Battery characteristics may limit this range.)
Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.
BLX1 Bodypack Transmitter
Audio Input Level max: -16 dBV maximum
Audio Input Level min (0 dB): +10 dBV maximum
Gain Adjustment Range: 26 dB
Input Impedance: 1 MΩ
RF Transmitter Output: 10 mW, typical (varies by region)
Dimensions: 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
Weight: 2.6 oz. (75 g), without batteries
Housing: Molded ABS
Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
Battery Life: up to 14 hours (alkaline)
Audio Input Level 0dB: -20 dBV maximum
Audio Input Level-10dB: -10 dBV maximum
Gain Adjustment Range: 10 dB
WL185 Lavalier Microphone
Type: Condenser (electret bias)
Frequency Response: 50 to 17,000 Hz
Output Impedance: 1800 Ω
Sensitivity [1]: -45.5 dBV/Pa
Maximum SPL: 130.5 dB SPL
Self Noise (A-Weighted): 28.0 dB SPL
Dynamic Range: 102.5 dB
Polarity: Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Power Requirements: Regulated nominal +5 Vdc (1.5 Vdc to 10 Vdc) provided at microphone connector pin 2 relative to pin 1 of a Shure wireless microphone transmitter
[1]1 Pa = 94 dB SPL
Each BLX1288/W85 Retail Box Includes:
(1) Shure BLX88 Dual-Channel Receiver(1) Shure BLX2/SM58 Handheld Transmitter
(1) Shure BLX1 Bodypack Transmitter
(1) Shure WL185 Lavalier Microphone
(1) Power Supply
(1) Handheld Microphone Clip
(1) Lavalier Microphone Clip
(1) Lavalier Microphone Windscreen
(4) AA Batteries
(1) User Guide
