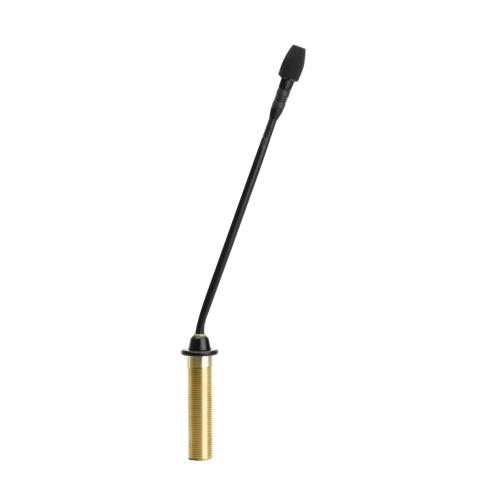

The MX410 surface mount version is a gooseneck microphone with a Bi-Color LED as status display. It has a 10" gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
Shure MX410 miniature gooseneck microphones are suitable for boardrooms and other sites where aesthetics are important. Permanently mount them at conference tables or lecterns using the MX400SMP surface mount, or use the MX400DP moveable desktop base, which includes a configurable mute button with logic output. Also compatible with the MX890 wireless desktop base and the ULXD8 wireless base.
Shure MX410/C Microflex 10" Gooseneck Microphone Features:
- Gooseneck length: 10 inch / 25.4 cm.
- Low profile, aesthetic design.
- Wide dynamic range and smooth frequency response.
- RF filtering with CommShield technology.
- Logic input for external LED control.
- Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top.
- Capsule options: None, Cardioid, Supercardioid.
- Preamplifier Options.
- MX400DP Desktop Base for MX405 and MX410 models.
- MX890 Wireless Desktop Base for MX405 and MX410 models.
- MX400SMP Surface Mount Preamp for MX405 and MX410 models.
- MXW8 Wireless Desktop Base for MX405, MX410 and MX415 models.
- ULXD8 Wireless Desktop Base for MX405, MX410 and MX415 models.
Shure MX410/C Product Specifications:
Type
Electret Condenser
Frequency Response
50-17000 Hz
Polar Pattern
Cardioid
Output Impedance
170 Ω
Output Configuration
Active Balanced
Sensitivity @ 1 kHz, open circuit voltage
−35 dBV/Pa (18 mV) (1 Pa=94 dB SPL)
Maximum SPL 1 kHz at 1% THD, 1 kΩ load
121 dB
Self Noise (A-weighted)
28 dB SPL
Signal-to-Noise Ratio (Ref. 94 dB SPL at 1 kHz)
66 dB
Dynamic Range (1 kΩ load, @ 1 kHz)
93 dB
Common Mode Rejection (10 to 100,000 kHz)
45 dB, minimum
Clipping Level at 1% THD
−8 dBV (0.4 V)
Polarity
3-pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
5-pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
Weight
0.068 kg (0.150 lbs)
Logic Connections
LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
Mute Switch Attenuation
-50 dB minimum
Cable
MX400DP
6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
Environmental Conditions
Operating Temperature: -18-57°C (0-135°F)
Storage Temperature: -29-74°C (-20-165°F)
Relative Humidity: 0-95%
Power Requirements
Phantom Power
48-52 V DC, 8.0 mA
Each MX410/C Retail Box Includes:
(1) Shure MX410/C Microflex 10" Modular Shock-Mounted Gooseneck Microphone
(1) RK513WS Snap-fit Foam Windscreen
(1) MX400SMP Surface Mount Preamp
(1) 65A2190 Fastening Wing Nut
(2) 66A405 Rubber Isolation Rings
(1) 95A2529 5-Pin XLR Female Connector
