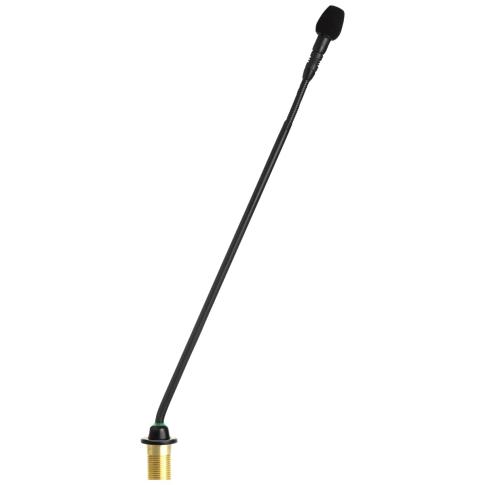

Shure MX415LPDF/C 15" Shock-Mounted Gooseneck with Green/Red LED Ring at Bottom, Less Preamplifier, Dual Flexible, and Cardioid Capsule
Expected May 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews>
30-Day Returns
Don't Like it? Return it.
The MX415 surface mount version is a gooseneck microphone with a Bi-Color LED or light ring status display. It has a 15" gooseneck and is suitable for boardrooms and other sites where aesthetics are important. Permanently mount them at conference tables or lecterns using the MX400SMP surface mount, or use the MX400DP moveable desktop base, which includes a configurable mute button with logic output. Also compatible with the MX890 wireless desktop base and the ULXD8 wireless base.
Shure MX415LPDF/C 15" Shock-Mounted Gooseneck Features:
- Gooseneck length: 15 inch / 38.1 cm.
- Low profile, aesthetic design.
- Wide dynamic range and smooth frequency response.
- RF filtering with CommShield technology.
- Logic input for external LED control.
- Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top.
- Capsule: Cardioid.
Shure MX415LPDF/C Product Specifications:
Type
Electret Condenser
Frequency Response
50-17000 Hz
Polar Pattern
MX415/C: Cardioid
Output Impedance
170 Ω
Output Configuration
Active Balanced
Sensitivity @ 1 kHz, open circuit voltage
Cardioid: -35 dBV/Pa (18 mV)
1 Pa=94 dB SPL
Maximum SPL (1 kHz at 1% THD, 1 kΩ load)
Cardioid: 121 dB
Self Noise (A-weighted)
Cardioid: 28 dB SPL
Signal-to-Noise Ratio
Ref. 94 dB SPL at 1 kHz
Cardioid: 66 dB
Dynamic Range 1 kΩ load, @ 1 kHz
93 dB
Common Mode Rejection
10 to 100,000 kHz
45 dB, minimum
Clipping Level at 1% THD
-8 dBV (0.4 V)
Polarity
3-pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
5-pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
Weight
MX415: 0.07 kg (0.154 lbs)
Logic Connections
LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
Mute Switch Attenuation
-50 dB minimum
Cable
MX400DP
6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
Environmental Conditions
Operating Temperature: -18-57°C (0-135°F)
Storage Temperature: -29-74°C (-20-165°F)
Relative Humidity: 0-95%
Power Requirements
Phantom Power
48-52 V DC, 8.0 mA
Each MX415LPDF/C Retail Box Includes:
(1) Shure MX415LPDF/C 15" Shock-Mounted Gooseneck with Green/Red LED Ring at Bottom, Less Preamplifier, Dual Flexible, and Cardioid Capsule
(1) RK513WS Snap-fit Foam Windscreen
