Expected October 31, 2024

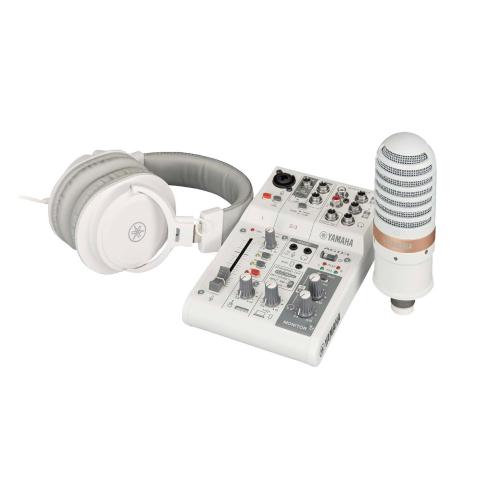

The AG03MK2 LSPK (Live Streaming Package) is a full-streaming setup that includes, and centers around, an AG03MK2 3-channel mixer - the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.
Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.
With its variety of inputs and outputs, DSP effects, and LOOPBACK function, the original AG03 quickly established itself as a staple amongst live streamers looking to configure a simple yet comprehensive setup without compromising on sound quality. The next-generation AG03MK2 adds more flexible connectivity including 4-pole mini I/O expanding the range of streaming styles, as well as a new mute button crucial for various live streaming applications. Along with improvements in build, design, internal circuitry, and overall sound, the MK2 will further solidify the AG series as an industry standard by which all others will be compared.
Yamaha Pro Audio AG03MK2 Mixer/Interface Features:
- A 3-channel live streaming mixer with USB audio interface.
- 60 mm faders for mic CH1.
- +48 V phantom power on CH1 input for condenser mics or Dl boxes.
- Hi-Z input for guitars on CH2.
- High resolution (24-bit, 192 kHz) 2-track audio recording and playback.
- 4-pole mini input/output (TRRS) to support a wider range of streaming applications.
- Flexible inputs and LOOPBACK function ideal for live streaming or recording.
- Mute button for convenient live streaming.
- Easy control and pro sound with Amp Simulator and 1-TOUCH COMP/EQ, REVERB.
- AG Controller (Windows/Mac/iOS) for precise parameter control.
- Windows/Mac support by USB-C connection.
- iOS connectivity via Apple Camera Adapter (requires external USB power supply.)
- Android supported by 4-pole mini input/output (TRRS.)
- USB-C power input (5 V DC, 900 mA.)
- Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available.
Condenser microphones have become a staple of most studio and broadcasting environments around the world for good reason: their ability to capture the most subtle nuances of vocal and instrument performances. The YCM01 is a studio-quality condenser microphone that adopts a cardioid polar pattern for more focused sensitivity, making it ideal for a broad range of applications, from live streaming or gaming voice chat, to remote meetings, and of course, music production. Offered in both black and white versions to adapt to your preferred streaming or recording environment, the stylish, iconic design of the YCM01 will add a new level of professionalism to your creative content.
Yamaha Pro Audio YCM01 Microphone Features:
- A studio-quality condenser microphone.
- Iconic and stylish design.
- Studio-quality condenser microphone.
- Cardioid polar pattern.
- XLR connection.
Yamaha Pro Audio AG03MK2 Product Specifications:
Input Channels | Mono[MIC/LINE] | 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously |
---|---|---|
Stereo[LINE] | 1 - Stereo Line / Guitar Input (Mono) | |
Smartphone | 1 - 4-pole mini input/output (TRRS) | |
USB | 1 | |
Output Channels | PHONES | 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously |
Smartphone | 1 - 4-pole mini input/output (TRRS) | |
MONITOR OUT | 2 - L/R Stereo: Phone, RCA | |
USB | 1 | |
Bus | 1 Stereo | |
Functions | MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) | |
On-board processors | DSP | COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller |
USB | USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C |
USB DC Power input | 1 - Type-C, 5 V DC, 900 mA | |
Power requirements | 5 V DC, 900 mA | |
Power consumption | Max. 4.5 W | |
Dimensions | W | 126 mm (5.0") |
H | 63 mm (2.5") | |
D | 201 mm (7.9") | |
Net weight | 0.8 kg (1.8 lbs) | |
Included Accessories | USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information | |
Others | Operating Temperature: 0 to + 40 ℃ |
Yamaha Pro Audio YCM01 Product Specifications:
Microphone Unit | Back electret condenser type | |
---|---|---|
Polar Pattern | Cardioid | |
Address Type | Side | |
Frequency Response | 30 Hz - 20 kHz | |
Max Input SPL | 130 dB (THD ≦ 1.0 % at 1 kHz) | |
Sensitivity | -37 dB ± 3 dB (0 dB=1V/Pa, at 1kHz) | |
Connector | XLR | |
Dimensions (Microphone Only) | Ø55 x 166 mm (Ø2.2" x 6.5") | |
Weight (Microphone Only) | 0.4 kg (0.9 lbs) | |
Included Accessories | Microphone stand adaptor x 1, Microphone pouch x 1, Owner’s manual, Technical specifications |
Each AG03MK2-W-LSPK Retail Box Includes:
(1) Yamaha Pro Audio AG03MK2-W White 3-Channel Mixer/USB Interface for IOS/Mac/PC
(1) USB cable (USB-C to USB-A), 1.5 m
(1) Yamaha Pro Audio YCM01-W White Condenser Microphone
(1) Microphone Stand Adaptor
(1) Microphone Pouch
(1) Yamaha Pro Audio YH-MT1 Studio-quality headphones
(1) XLR microphone cable (3 m, Black)
Included Software
Cubase AI music production software
WaveLab Cast for audio production and editing
