HS Series speakers have become the standard in studio monitors, trusted for many years by the world's top audio engineers, producers, and artists. Now Yamaha has redefined their essence in a compact housing. The HS3 is a powerful tool to help create a wide range of audio content-from music production to video editing-that meets the expectations of creators who have limited space and need to keep the volume down but do not want to compromise on monitoring quality. The HS3 continues the design philosophy and know-how of previous Yamaha studio monitors. No effort has been spared in the pursuit of the optimal product, and the resulting speakers comprise carefully selecting parts such as a high-performance class-D amp, a highly resilient MDF cabinet, and woofers and soft dome tweeters that deliver a sound that is faithful to the source despite their small size. It also features proprietary "Twisted Flare Port" technology that reduces air turbulence noise in the bass reflex port, providing clear and accurate bass. That's the secret to why the HS3 delivers outstanding resolution, sound image, and depth, with a flat response across all bandwidths without any coloring of the original sound.
The sound produced by speakers is sometimes affected by the surrounding environment. The rear panel of the HS3 is equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls. The rear panel of the HS3 is equipped with combination XLR/TRS phone, RCA, and stereo mini jacks, allowing you to connect to a wide range of professional and consumer equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most commonly used features-power button, volume knob, and headphone jack-are located in the front for easy access. The compact size of the HS3 was made possible thanks to the highly efficient class-D amp. Using one amp for two speakers has enabled Yamaha to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.
Yamaha Pro Audio HS3 W 3.5" Powered Monitors Features:
- Sound that is always true to the original.
- Optimal sound tailored to your environment.
- Inputs and controls to fit any use case.
- Compact and portable.
- Designed to give you the most honest, precise reference possible.
- Providing an ideal sonic platform to build on throughout the mixing process.
- Yamaha's speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business.
Yamaha Pro Audio HS3 W Product Specifications:
General Specifications | |
---|---|
System Type | 2-way Powered speaker |
Frequency Response (−3 dB) | 85 Hz - 20 kHz |
Frequency Response (−10 dB) | 70 Hz - 22 kHz |
Crossover Frequency | 3.2 kHz |
Maximum Output Level (Measured peak, IEC noise@1m) | 100 dB SPL |
Dimensions (W×H×D) Left Side | 132×223×189 mm (5.2" x 8.8" x 7.4" |
Dimensions (W×H×D) Right Side | 132×223×177 mm (5.2" x 8.8" x 7.0") |
Weight Left Side | 2.8 kg (6.2 lbs) |
Weight Right Side | 2.1 kg (4.6 lbs) |
Input Connector Left Side | COMBO (XLR/TRS Phone) ×2 RCA ×2 Stereo Mini |
Input Connector Right Side | Speaker Input |
Output Connector Left Side | Headphone Speaker Output |
Speaker section | |
Enclosure | Bass-reflex type, Material: MDF |
Speaker Components | HF: 0.75" Dome LF: 3.5" Cone |
Nominal Impedance | 6 Ω |
Amplifier section | |
Maximum Output Dynamic, RL=6 Ω | 26 W + 26 W |
Maximum Output THD 0.1%, 1kHz, RL=6 Ω | 20 W + 20 W |
Input Impedance | LINE 1 (COMBO): 20 kΩ, LINE 2 (RCA, ST Mini): 10 kΩ |
Input Sensitivity (Volume: Maximum) | LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): −10 dBu |
Maximum Input | LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu |
Input Connectors | LINE 1: COMBO (XLR/TRS PHONE) LINE 2: RCA, Stereo Mini |
Controls | Front: Volume |
ROOM CONTROL SWITCH | 0/−2/−4 dB under 500 Hz |
HIGH TRIM SWITCH | +2/0/−2 dB above 2 kHz |
Indicator | Power ON (White LED) |
Power Requirements (*) | Depending on area of purchase; 100-240 V, 50/60 Hz |
Power Consumption | 15 W |
* While this product will work at a voltage of between 100 V to 240 V, as limiter settings vary depending on the supply voltage, make sure to use this product at the supply voltage indicated on the rear panel of this product. The contents of this manual apply to the latest specifications as of the publishing date.
Each HS3 W Retail Box Includes:

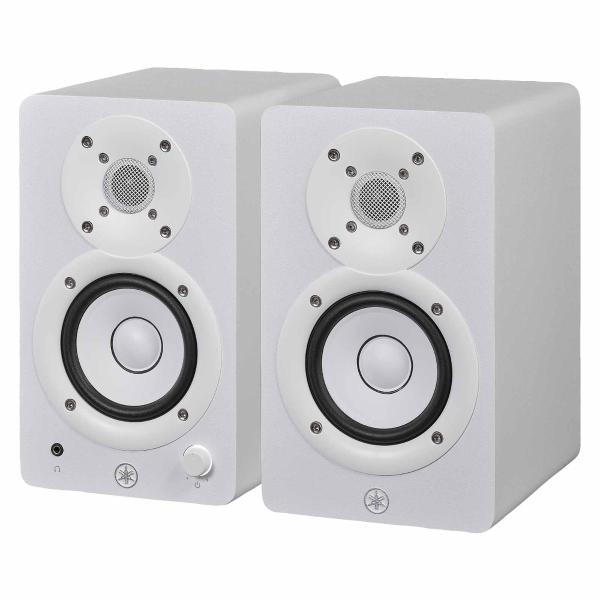

(2) Yamaha Pro Audio HS3 W 3.5" Powered Studio Monitors - White
(1) Stereo Mini - RCA Cable 1.5 m
(1) Speaker Cable 2.5 m
(1) Anti Slip Pad
(1) Quick Start Guide
(1) Safety Guide
