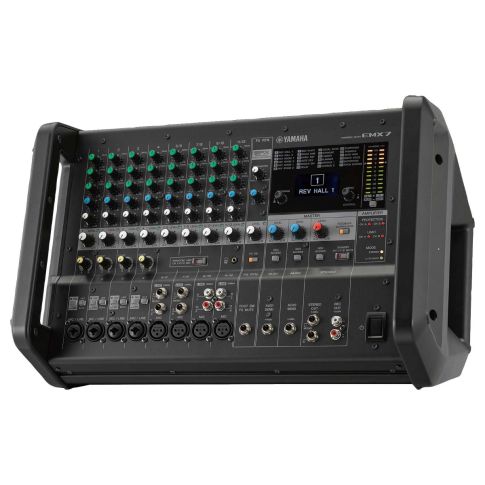

Yamaha Pro Audio EMX7 12-Input Powered Mixer with Dual 710W Amp
Expected May 31, 2025
Only at IDJ NOW
Fast Shipping
Most products ship same-day
30-Day Price Protection
Find a lower price, you're covered.
5000+ Reviews
90%+5-star reviews>
30-Day Returns
Don't Like it? Return it.
Box-type robust and portable powered mixer featuring high efficiency power amplifier of 710W and mixer with comprehensive effects, Flex 9 Graphic Equalizer, speaker preset and built-in feedback suppressor. The new EMX7 and EMX5 were designed specifically for musicians, performers, or public speakers who put a premium on sound quality and convenient operation, and are ready to take their sound reinforcement to the next level. Despite their compact construction, only speakers and a microphone are required to configure a fully functioning, extremely portable, and reliable sound system with all the tools you need to mix, process, and deliver your audio just the way you want, anywhere you want. The EMX7 and EMX5 models feature a built-in high-efficiency power amplifier of 2 x 710W, 2 x 630W of output power respectively. Despite their low power consumption, these amps are capable of very high volume output, yet still manage to remain surprisingly lightweight. Both models also come equipped with an onboard overload protection function to improve reliability and prolong component life and performance quality.
The EMX7 and EMX5 benefit from a robust and portable design with a rugged, impact-resistant, powder-coated metal chassis geared towards extended operation and road usage. Large handles on the front and back of the enclosure make it extremely portable, and also help to protect knobs and terminals on the surface of the chassis from impact or pressure during transport. With their intuitive, user-friendly architecture, the EMX7 and EMX5 can be setup and operated quickly and easily by users with a fundamental understanding of sound reinforcement. Their versatile enclosure design allows users to choose from a variety of vertical or horizontal placements depending on the type of application. From a tabletop, floor, or installation environment no matter used on a tabletop or from a seated position with the mixer placed on the floor. Both the EMX7 and EMX5 are equipped with four mono input channels and four mono/stereo input channels, allowing up to 8 microphones, and line-level devices such as keyboards and portable playback device to be connected to each channel. In addition, channel 4 can be used with Hi-Z inputs to connect instruments such as guitars or basses directly. Each model is also equipped with 2 AUX SEND connections for a monitoring system or external effect devices, REC OUT unbalanced RCA pin output jacks to connect an external recorder, and STEREO OUT TRS phone jacks to output the mixed stereo signal.
Yamaha Pro Audio EMX7 12-Input Powered Mixer Features:
- 2x 710W [4Ω], 2x 500W [8Ω] (1kHz THD+N less than 10% CEA2006.)
- 2x 600W [4Ω], 2x 400W [8Ω] (1kHz THD+N less than 1% CEA2006.)
- Powerful & High Efficiency Class-D Amplifier.
- 12 Line Inputs (8 mono + 4 stereo.)
- High-Z input (channel 4) to connect guitars or basses directly.
- Flex 9 Graphic Equalizer.
- Onboard Feedback Suppressor.
- Comprehensive, professional 24 different effects.
- Yamaha Speaker presets.
- Metal chassis for extended operation and robustness.
- Large handles for extreme portability and protection.
- Universal power supply eliminates concern on power fluctuations.
- Optional rack-mount kit available.
Yamaha Pro Audio EMX7 Product Specifications:
| Maximum Output Power (1 kHz) | THD+N <10% 710 W + 710 W (4 Ω), 500 W + 500 W (8 Ω) THD+N <1% 600 W + 600 W (4 Ω), 400 W + 400 W (8 Ω) |
| Input Channels 12 channels | 12 channels (max. 8 MIC/12 LINE, 4 Mono + 4 Stereo) CH4: Hi-Z input supported |
| Output Channels | SPEAKERS (A, B): 1, AUX1 SEND: 1, AUX2 SEND: 1, STEREO OUT (L, R): 1, REC OUT (L, R): 1 |
| Bus | Stereo: 1 AUX: 2 (Including FX) |
| Input Channel Function: COMP | Multiple parameters (gain, threshold, ratio) can be adjusted simultaneously with a single control. Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to +7 dB Attack time: approx. 25 ms, Release time: approx. 300 ms |
| Input Channel Function: Equalizer | HIGH: 10 kHz ±15 dB (Shelving) MID: 2.5 kHz ±15 dB (Peaking) LOW: 100 Hz ±15 dB (Shelving) |
| Level Meter | 2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK |
| Phantom Power Voltage | +48 V |
| Built-in Effect | SPX Algorithm: 24 programs |
| FOOT SW | Effect mute on/off |
| DSP Processing | Feedback suppressor, Graphic equalizer, Speaker processor |
| Protection | Load Protection: DC-fault Amplifier Protection: Over heat protection, Over current protection, Integral power protection Power Supply Protection: Over heat protection, Over current protection |
| Power Requirements | AC 100–240 V, 50 Hz/60 Hz |
| Power Consumption | 45 W (Idle) / 250 W (1/8 Power) |
| Dimensions when placed vertically (W × H × D) |
465 mm × 308 mm × 325 mm (18.3" × 12.1" × 12.8") |
| Net Weight | 9.5 kg (20.9 lb) |
| Optional Accessory | Rack-mount brackets: RK-EMX7, Foot switch: FC5 |
| Operating Temperature | 0 to +40˚C |
Each EMX7 Retail Box Includes:
(1) Yamaha Pro Audio EMX7 12-Input Powered Mixer with Dual 710W Amp
(1) AC power cord (2.5 m)
(1) Owner's Manual
(1) Technical Specifications
